Belt Idler Pulley Installation - Engine Mount Side

WARNING: This page is about a different variant/trim than selected.
  1. Install the belt idler pulley (2).

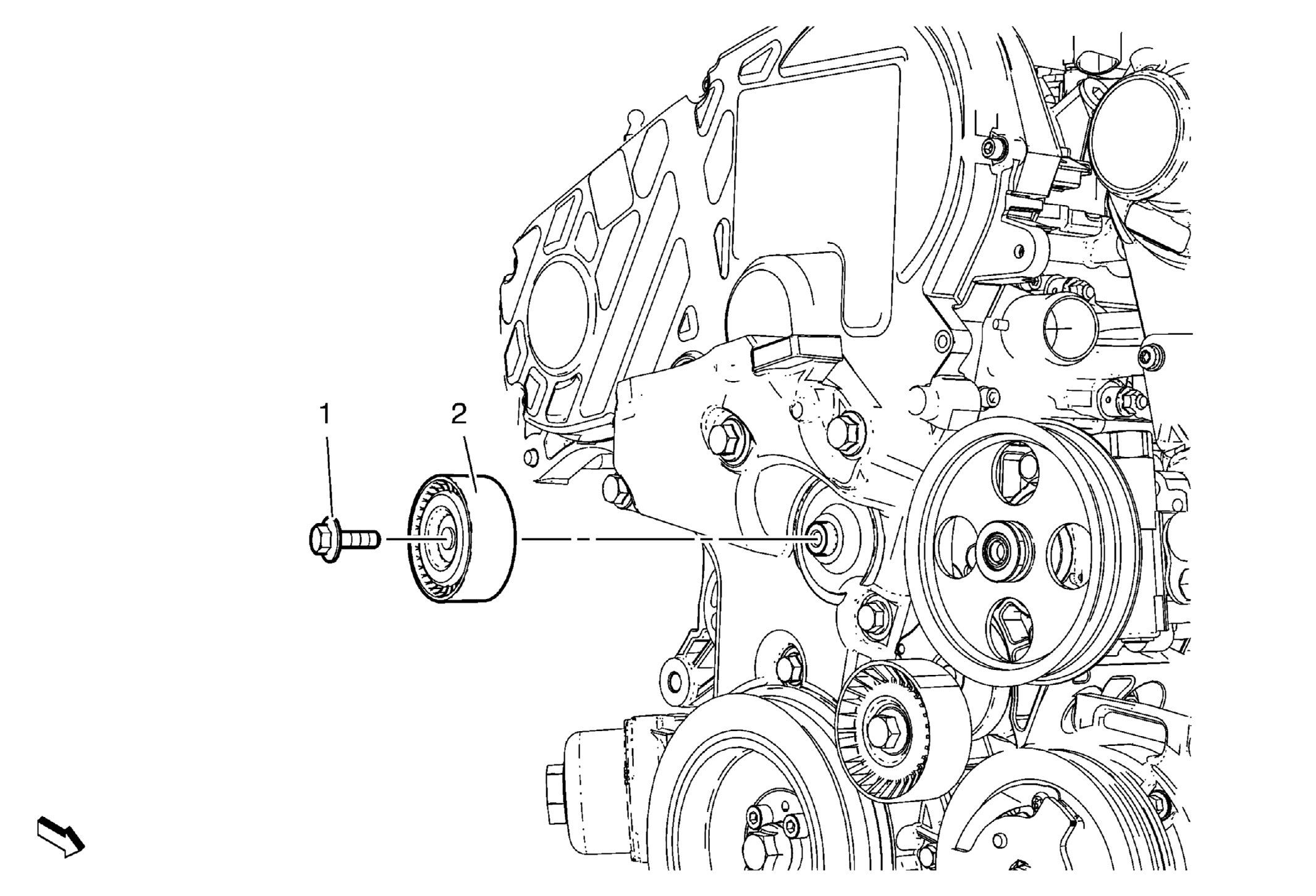

    Fig 1: Identifying Belt Idler Pulley
    GM2192272Courtesy of GENERAL MOTORS COMPANY
  2. Install the belt idler pulley bolt (1) and tighten to 25 N.m (18 lb ft).
    CAUTION: Refer to Fastener Caution .
