Belt Idler Pulley Bracket Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the belt idler pulley bracket (2).

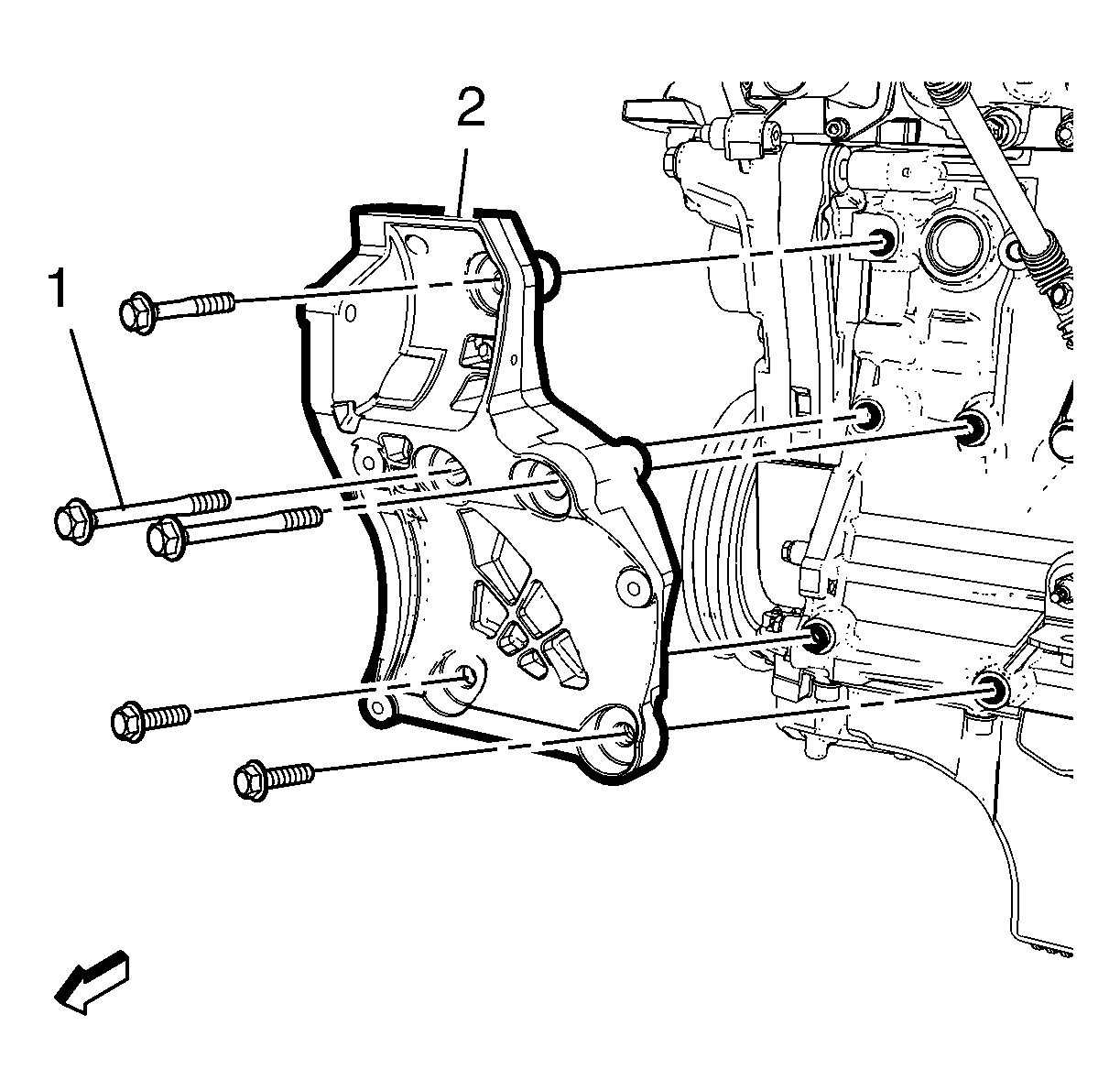

    Fig 1: Belt Idler Pulley Bracket And Bolts
    GM2373273Courtesy of GENERAL MOTORS COMPANY
  2. Install the 5 belt idler pulley bracket bolts (1) and tighten to 50 N.m (37 lb ft).
    CAUTION: Refer to Fastener Caution .
