Air Conditioning (A/C) Compressor Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the air conditioning compressor (2).

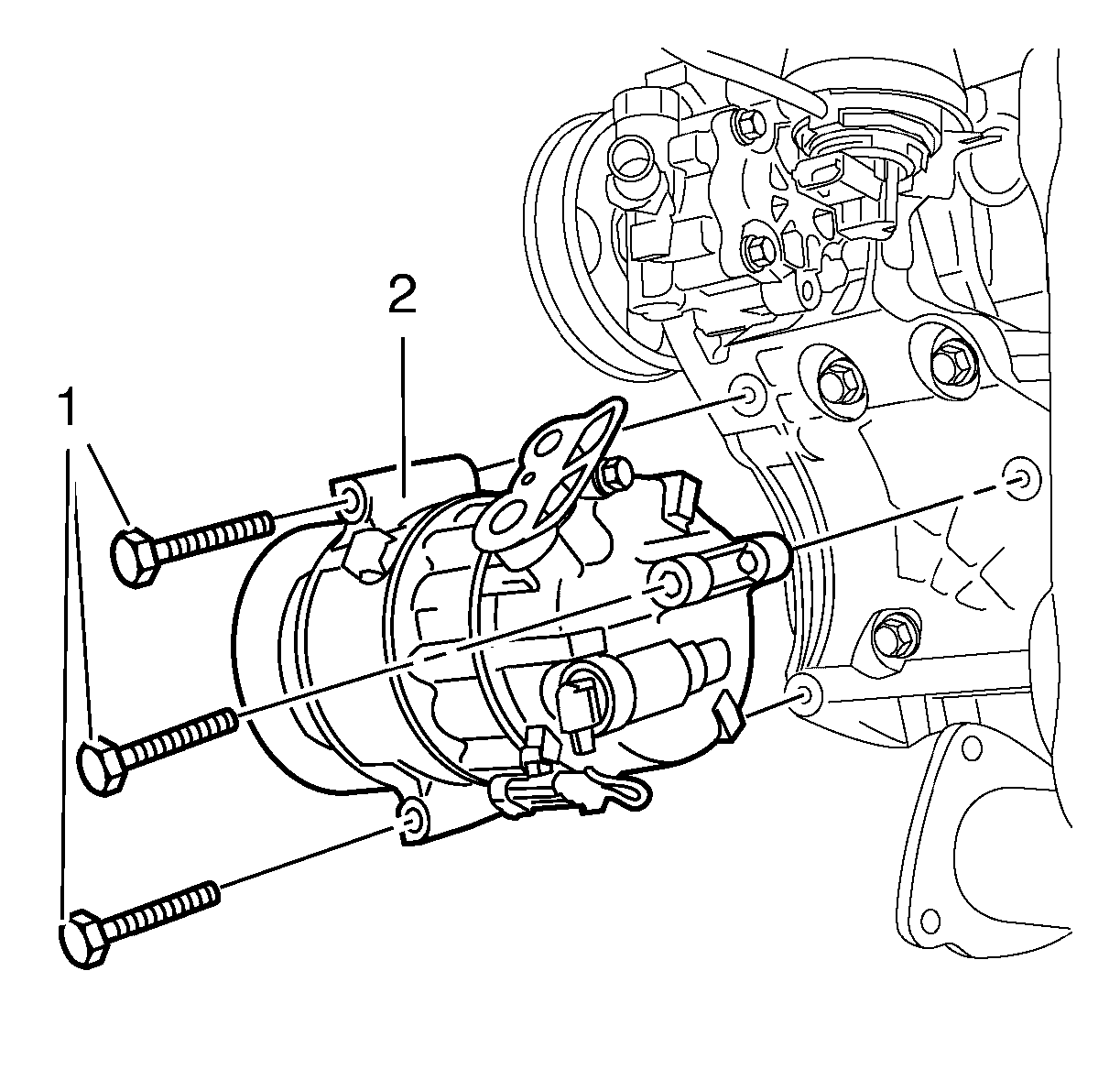

    Fig 1: Air Conditioning Compressor
    GM2026552Courtesy of GENERAL MOTORS COMPANY
  2. Install the 3 air conditioning compressor bolts (1) and tighten to 22 N.m (16 lb ft).
    CAUTION: Refer to Fastener Caution .
