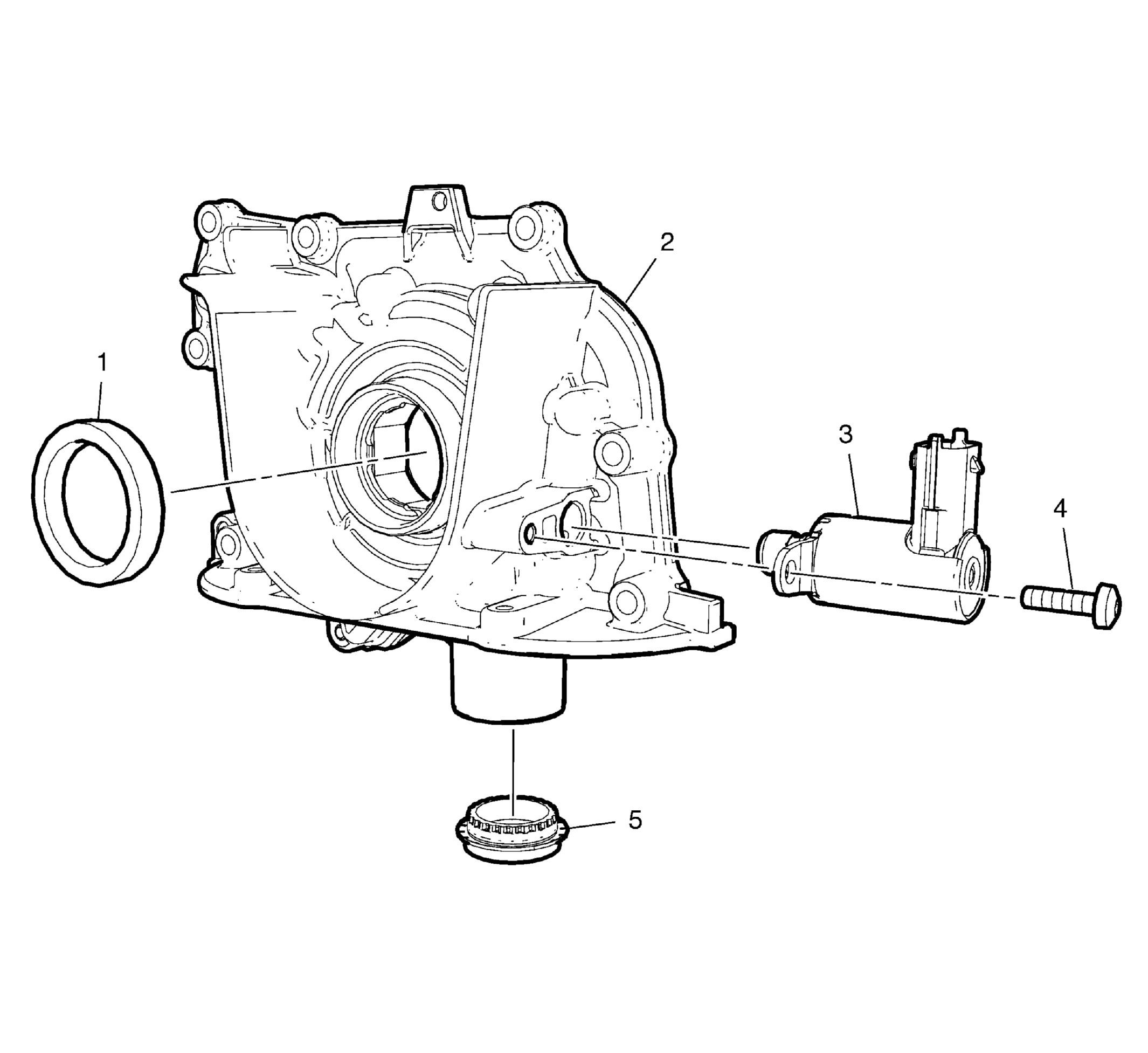

Oil Pump Component Assembly
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Crankshaft Front Oil Seal Ring |
| 2 |
Oil Pump Housing |
| 3 |
Oil Pump Flow Control Solenoid Valve |
| 4 |
Oil Pump Flow Control Solenoid Valve Bolt |
| 5 |
Oil Pump Suction Pipe Seal Ring |
