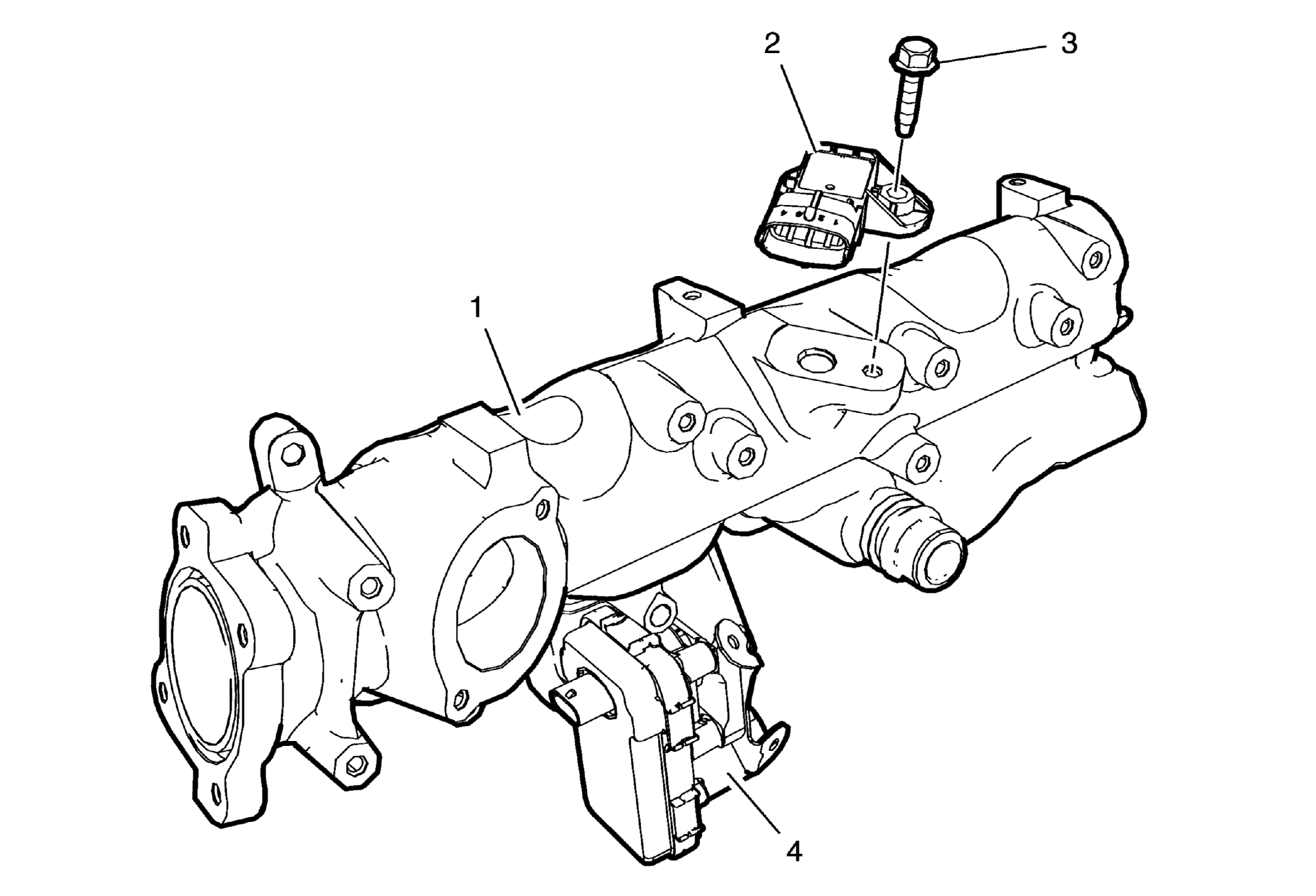

Intake Manifold
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Intake Manifold |
| 2 |
Manifold Absolute Pressure Sensor |
| 3 |
Manifold Absolute Pressure Sensor Bolt |
| 4 |
Intake Manifold Runner |
