Exhaust Gas Recirculation System
WARNING: This page is about a different variant/trim than selected.

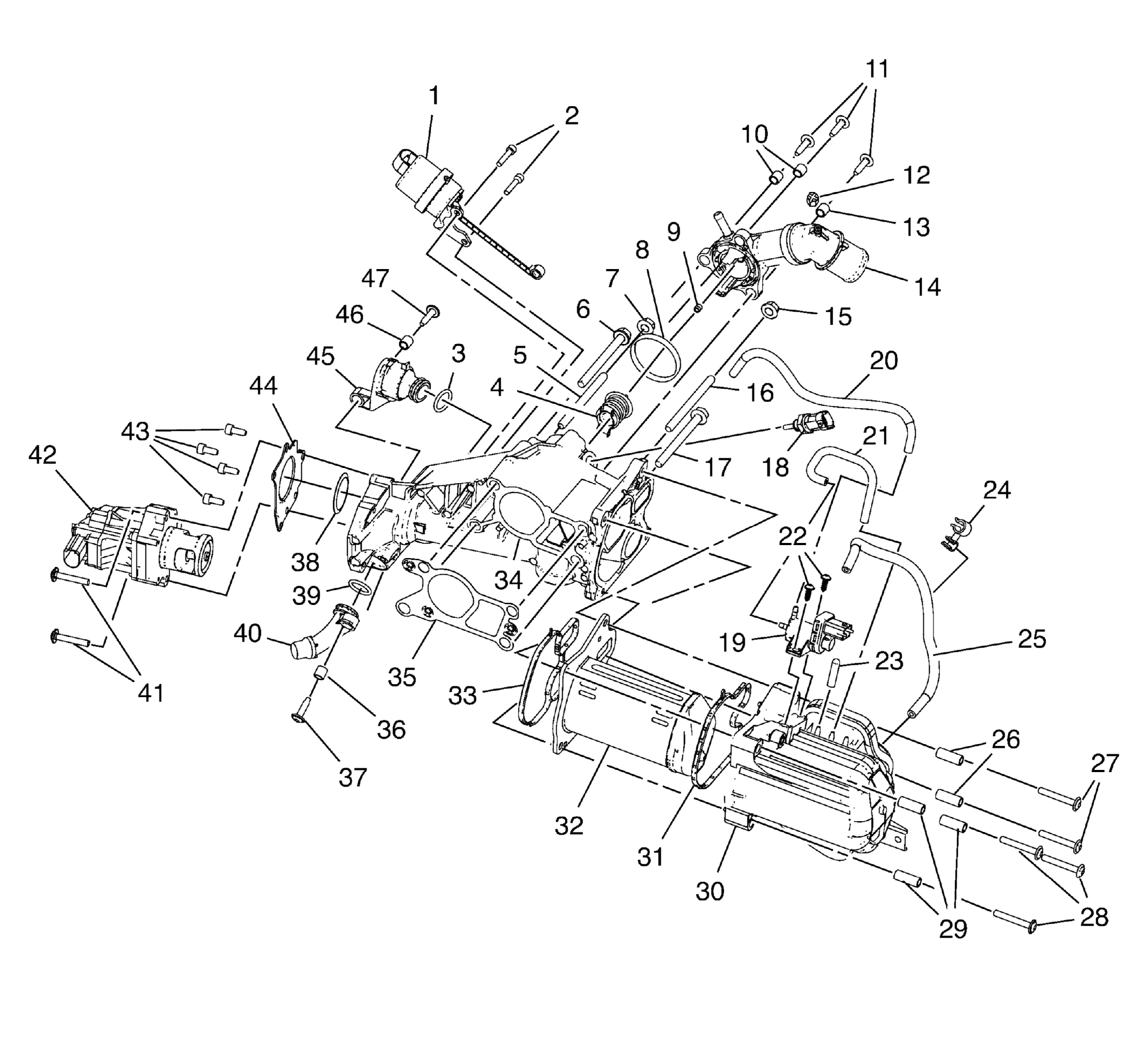

| Callout | Component Name |
|---|---|
| 1 | Exhaust Gas Recirculation Valve Actuator |
| 2 | Exhaust Gas Recirculation Valve Actuator Bolts |
| 3 | Exhaust Gas Recirculation Cooling Pipe Seal |
| 4 | Engine Coolant Thermostat |
| 5 | Exhaust Gas Recirculation Valve Bracket Stud |
| 6 | Exhaust Gas Recirculation Valve Cooler Bolt |
| 7 | Exhaust Gas Recirculation Valve Bracket Nut |
| 8 | Engine Coolant Thermostat Housing Seal |
| 9 | Engine Coolant Thermostat Retainer |
| 10 | Exhaust Gas Recirculation Valve Bushing |
| 11 | Exhaust Gas Recirculation Outlet Pipe Bolt |
| 12 | Engine Coolant Thermostat Housing Outlet Cap |
| 13 | Exhaust Gas Recirculation Valve Bushing |
| 14 | Engine Coolant Thermostat Housing |
| 15 | Exhaust Gas Recirculation Valve Cooler Nut |
| 16 | Exhaust Gas Recirculation Valve Bracket Stud |
| 17 | Exhaust Gas Recirculation Valve Cooler Bolt |
| 18 | Engine Coolant Temperature Sensor |
| 19 | Exhaust Gas Recirculation Vacuum Regulator Solenoid Valve |
| 20 | Exhaust Gas Recirculation Valve Vacuum Pipe |
| 21 | Exhaust Gas Recirculation Valve Vacuum Pipe |
| 22 | Exhaust Gas Recirculation Vacuum Regulator Solenoid Valve Bolt |
| 23 | Exhaust Gas Recirculation Valve Pipe Sleeve |
| 24 | Exhaust Gas Recirculation Valve Pipe Clip |
| 25 | Exhaust Gas Recirculation Valve Vacuum Pipe |
| 26 | Exhaust Gas Recirculation Valve Bushing |
| 27 | Exhaust Gas Recirculation Cooler Bolt |
| 28 | Exhaust Gas Recirculation Cooler Bolt |
| 29 | Exhaust Gas Recirculation Valve Bushing |
| 30 | Exhaust Gas Recirculation Valve Vacuum Tank |
| 31 | Exhaust Gas Recirculation Cooler Gasket |
| 32 | Exhaust Gas Recirculation Cooler |
| 33 | Exhaust Gas Recirculation Cooler Gasket |
| 34 | Exhaust Gas Recirculation Manifold |
| 35 | Exhaust Gas Recirculation Valve Gasket |
| 36 | Exhaust Gas Recirculation Valve Bushing |
| 37 | Exhaust Gas Recirculation Outlet Pipe Bolt |
| 38 | Exhaust Gas Recirculation Valve Washer |
| 39 | Exhaust Gas Recirculation Cooling Pipe Seal |
| 40 | Exhaust Gas Recirculation Cooler Outlet Pipe |
| 41 | Exhaust Gas Recirculation Valve Bolt |
| 42 | Exhaust Gas Recirculation Valve |
| 43 | Exhaust Gas Recirculation Valve Opening Cover Bolt |
| 44 | Exhaust Gas Recirculation Valve Base Plate |
| 45 | Exhaust Gas Recirculation Pipe |
| 46 | Exhaust Gas Recirculation Valve Bushing |
| 47 | Exhaust Gas Recirculation Outlet Pipe Bolt |
