Camshaft Timing Components
WARNING: This page is about a different variant/trim than selected.

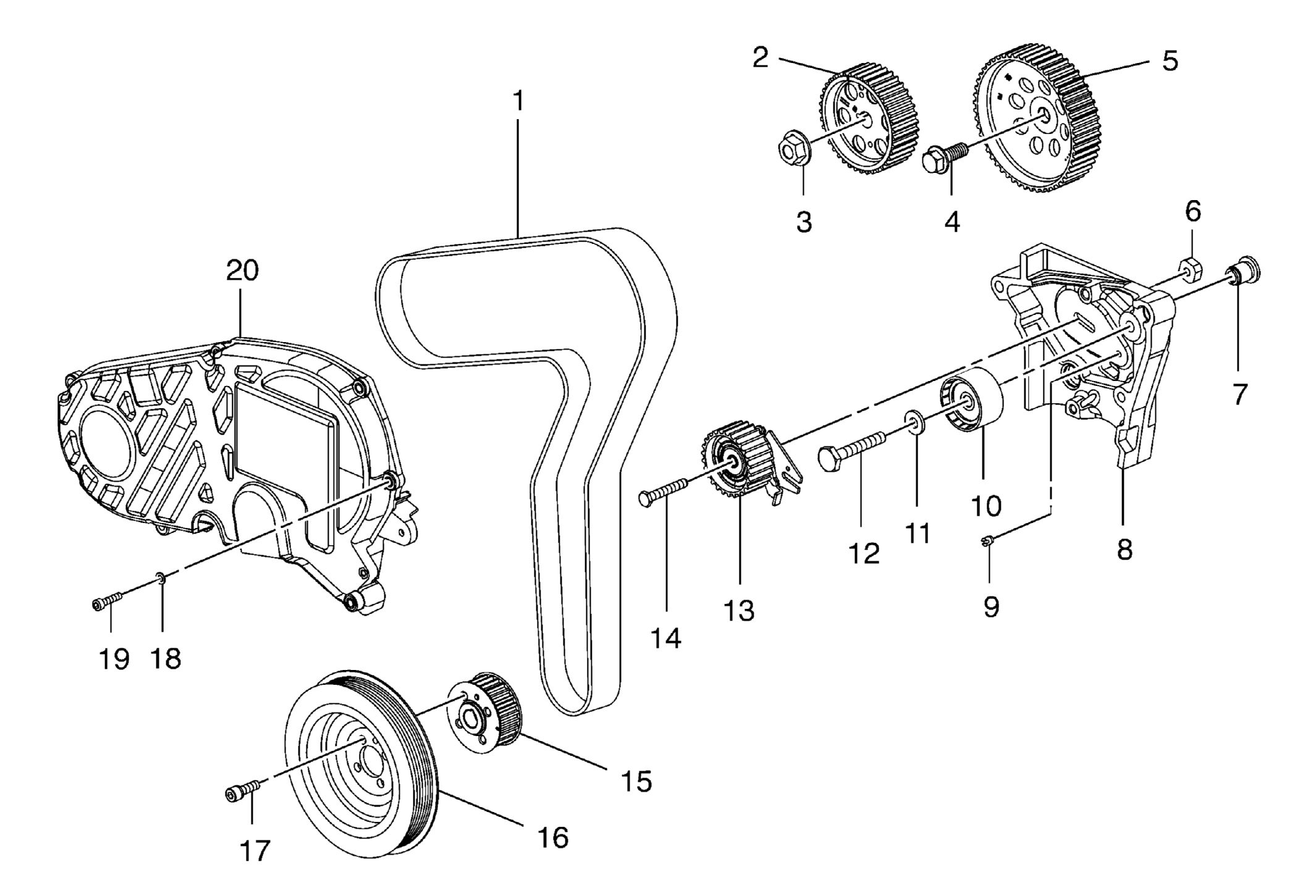

| Callout | Component Name |
|---|---|
| 1 | Timing Belt |
| 2 | Fuel Injection Pump Sprocket Wheel |
| 3 | Fuel Injection Pump Sprocket Wheel Nut |
| 4 | Camshaft Sprocket Wheel Bolt |
| 5 | Camshaft Sprocket Wheel |
| 6 | Timing Belt Tensioner Nut |
| 7 | Timing Belt Tensioner Bracket Spacer |
| 8 | Timing Belt Tensioner Bracket |
| 9 | Timing Belt Tensioner Special Screw |
| 10 | Timing Belt Idler Pulley |
| 11 | Timing Belt Idler Pulley Washer |
| 12 | Timing Belt Idler Pulley Bolt |
| 13 | Timing Belt Tensioner |
| 14 | Timing Belt Tensioner Bolt |
| 15 | Crankshaft Sprocket Wheel |
| 16 | Crankshaft Pulley |
| 17 | Crankshaft Pulley Bolt |
