Manifold Absolute Pressure Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

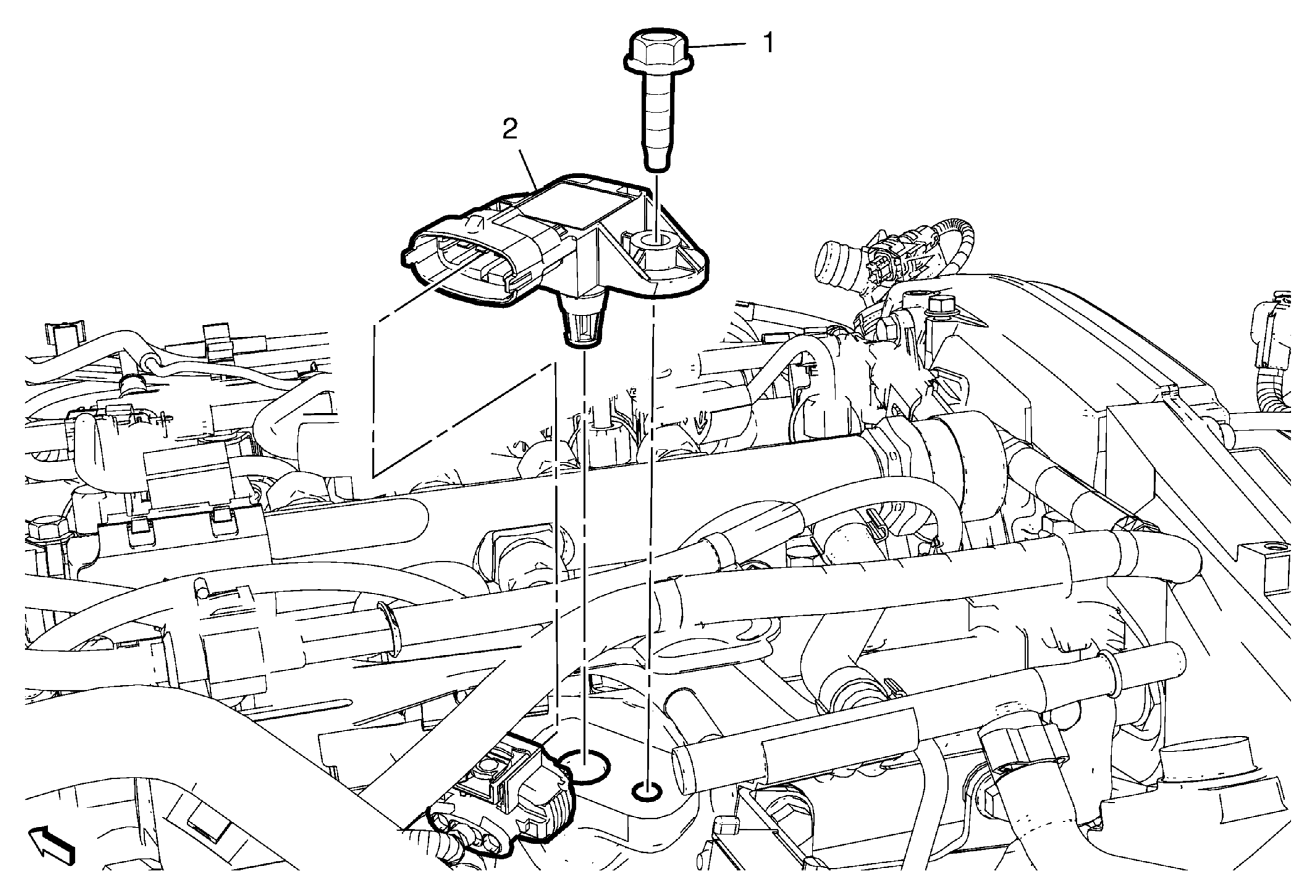

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the engine sight shield. Refer to Engine Sight Shield Replacement . Loosen the engine wiring harness as necessary and move aside.
1	Manifold Absolute Pressure Bolt CAUTION: Refer to Fastener Caution .
2	Manifold Absolute Pressure Sensor Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Manifold Absolute Pressure Bolt

CAUTION: Refer to Fastener Caution .

Manifold Absolute Pressure Sensor
Procedure
Disconnect the electrical connector.
