Glow Plug Wire Replacement

WARNING: This page is about a different variant/trim than selected.

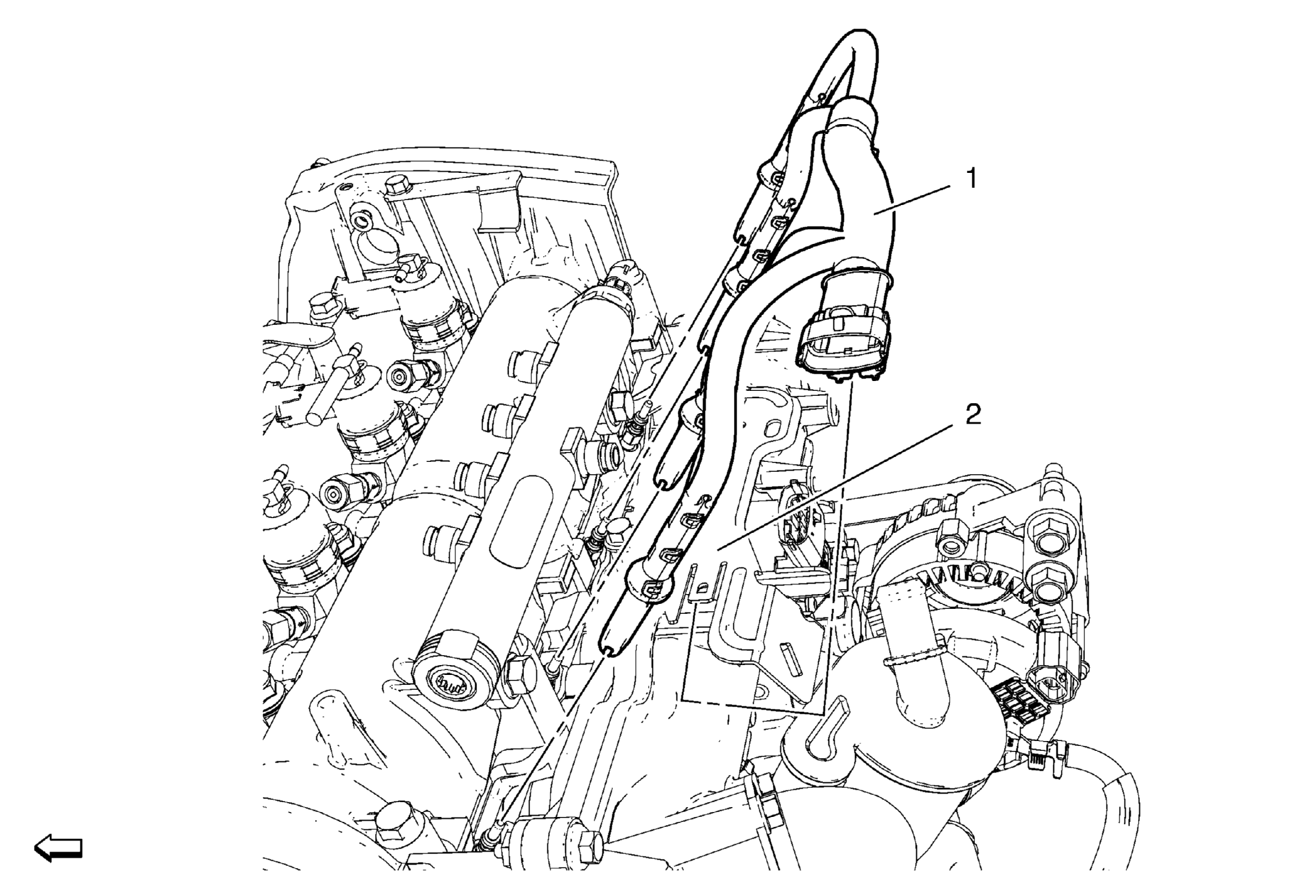

Fig 1: Glow Plug Wire

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the hood. Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
1	Glow Plug Wire Procedure Disconnect the electrical connector at each of the glow plugs.
2	Engine Control Module Wiring Harness Bracket Procedure Unclip the glow plug wire from the engine control module wiring harness bracket. Remove the glow plug wire.

Callout

Component Name

Preliminary Procedures

Glow Plug Wire
Procedure
Disconnect the electrical connector at each of the glow plugs.

Engine Control Module Wiring Harness Bracket

Procedure

Unclip the glow plug wire from the engine control module wiring harness bracket.
Remove the glow plug wire.
