Fuel Pressure Regulator Replacement (Fuel Rail Pressure Sensor)

WARNING: This page is about a different variant/trim than selected.

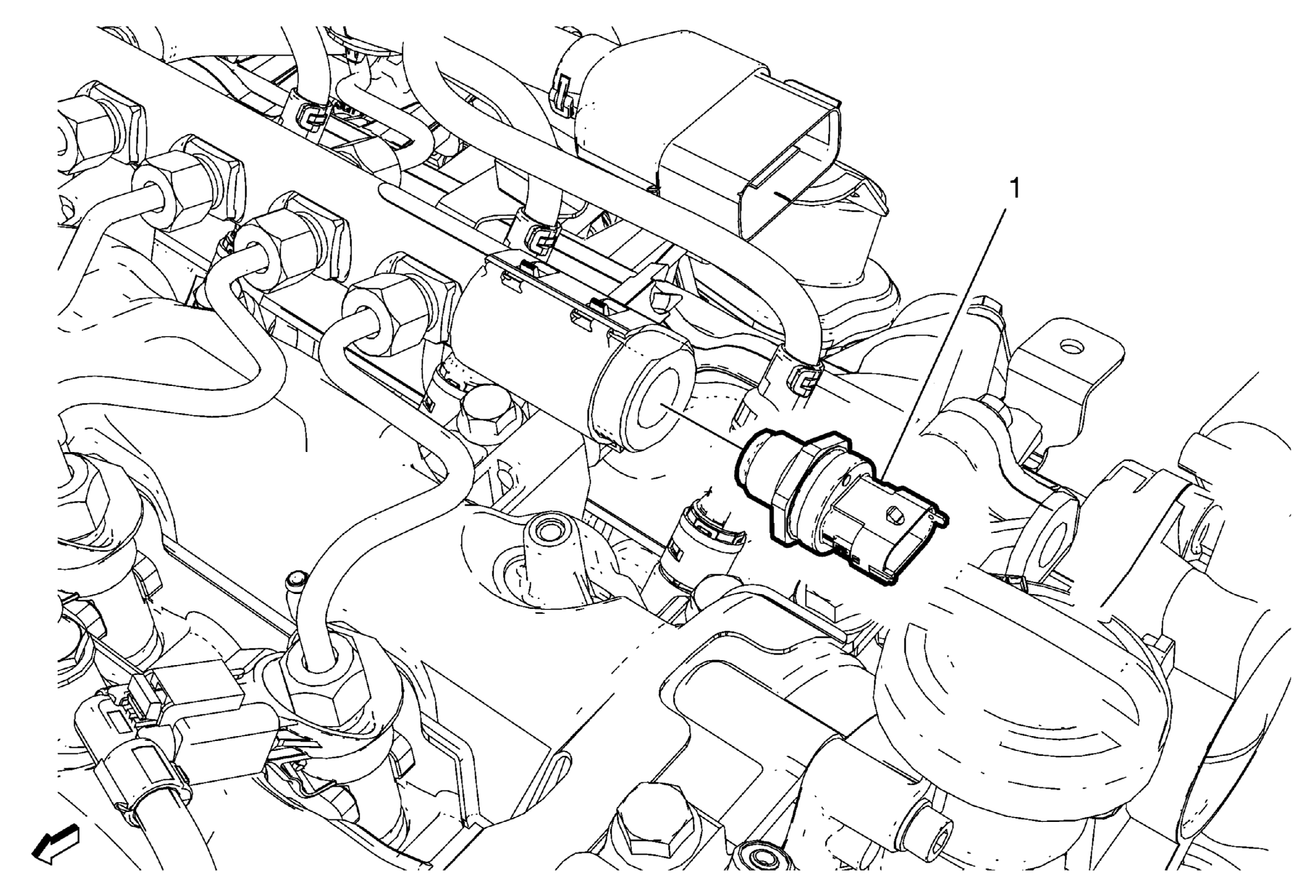

Fig 1: Fuel Pressure Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby. WARNING: Refer to Safety Goggles and Fuel Warning . Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the engine sight shield. Refer to Engine Sight Shield Replacement . Disconnect the wiring harness plug.
1	Fuel Pressure Service Valve CAUTION: Refer to Fastener Caution . Procedure After the replacement of the fuel pressure service valve, use a scan tool to perform the appropriate reset/learn function. Refer to K20 Engine Control Module: Programming and Setup (LUZ) . Tighten 70 N.m (52 lb ft)

Callout

Component Name

WARNING: Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.

WARNING: Refer to Safety Goggles and Fuel Warning .

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
Disconnect the wiring harness plug.

Fuel Pressure Service Valve

CAUTION: Refer to Fastener Caution .

Procedure
After the replacement of the fuel pressure service valve, use a scan tool to perform the appropriate reset/learn function. Refer to K20 Engine Control Module: Programming and Setup (LUZ) .
Tighten
70 N.m (52 lb ft)
