Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the fuel feed hose protector (3).

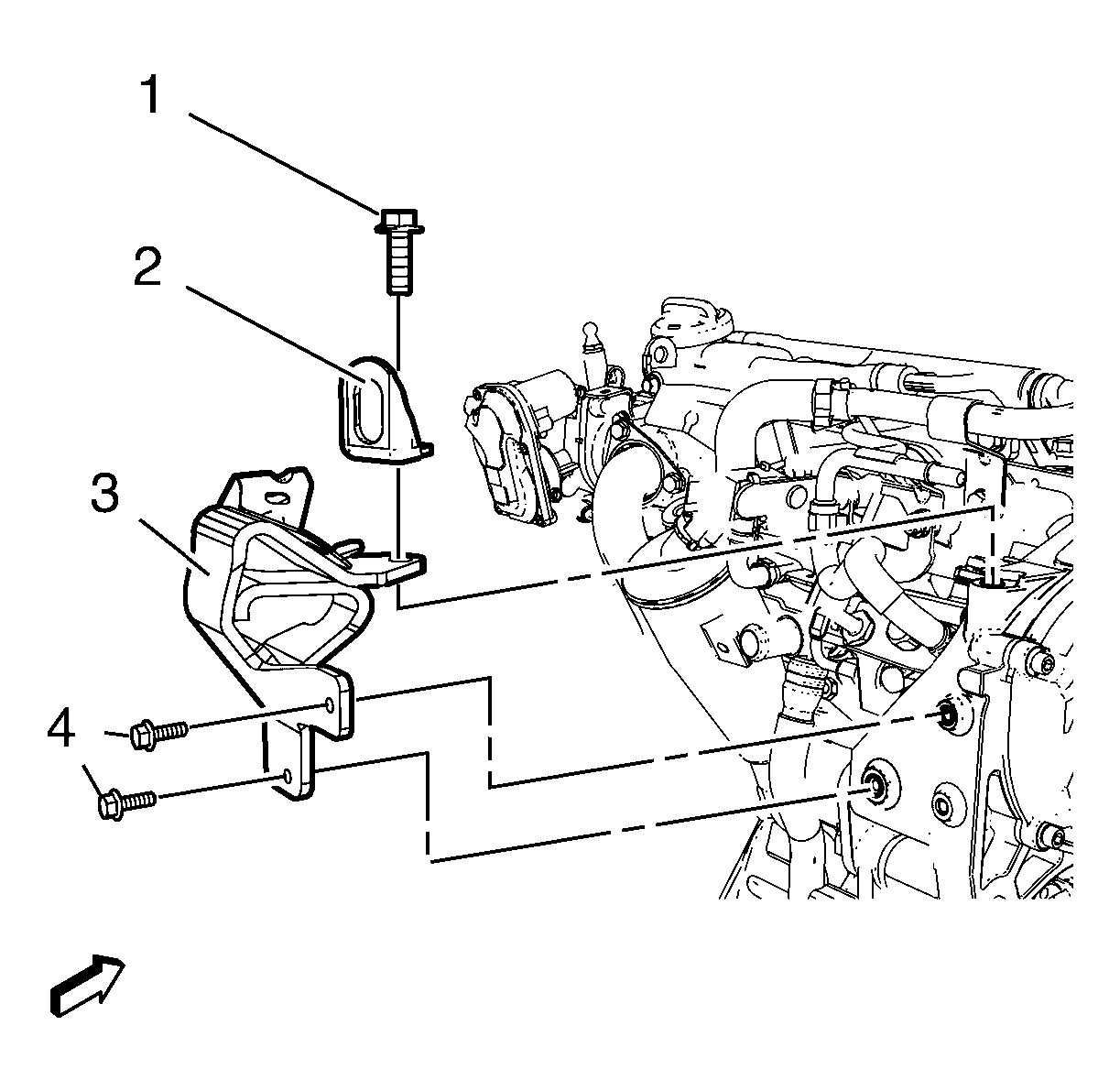

    Fig 1: Engine Lift Bracket And Bolt
    GM2189689Courtesy of GENERAL MOTORS COMPANY
  2. Loosely install the 2 fuel feed hose protector bolts (4).
  3. Install the engine lift bracket (2).
  4. Install the engine lift bracket bolt (1) and tighten to 50 N.m (37 lb ft).
    CAUTION: Refer to Fastener Caution .
  5. Tighten the 2 fuel feed hose protector bolts (4) to 9 N.m (80 lb in).
  6. Install the engine sight shield. Refer to Engine Sight Shield Replacement .
  7. Close the hood.
