Charge Air Temperature Sensor Replacement - Charge Air Cooler Outlet Pipe

WARNING: This page is about a different variant/trim than selected.

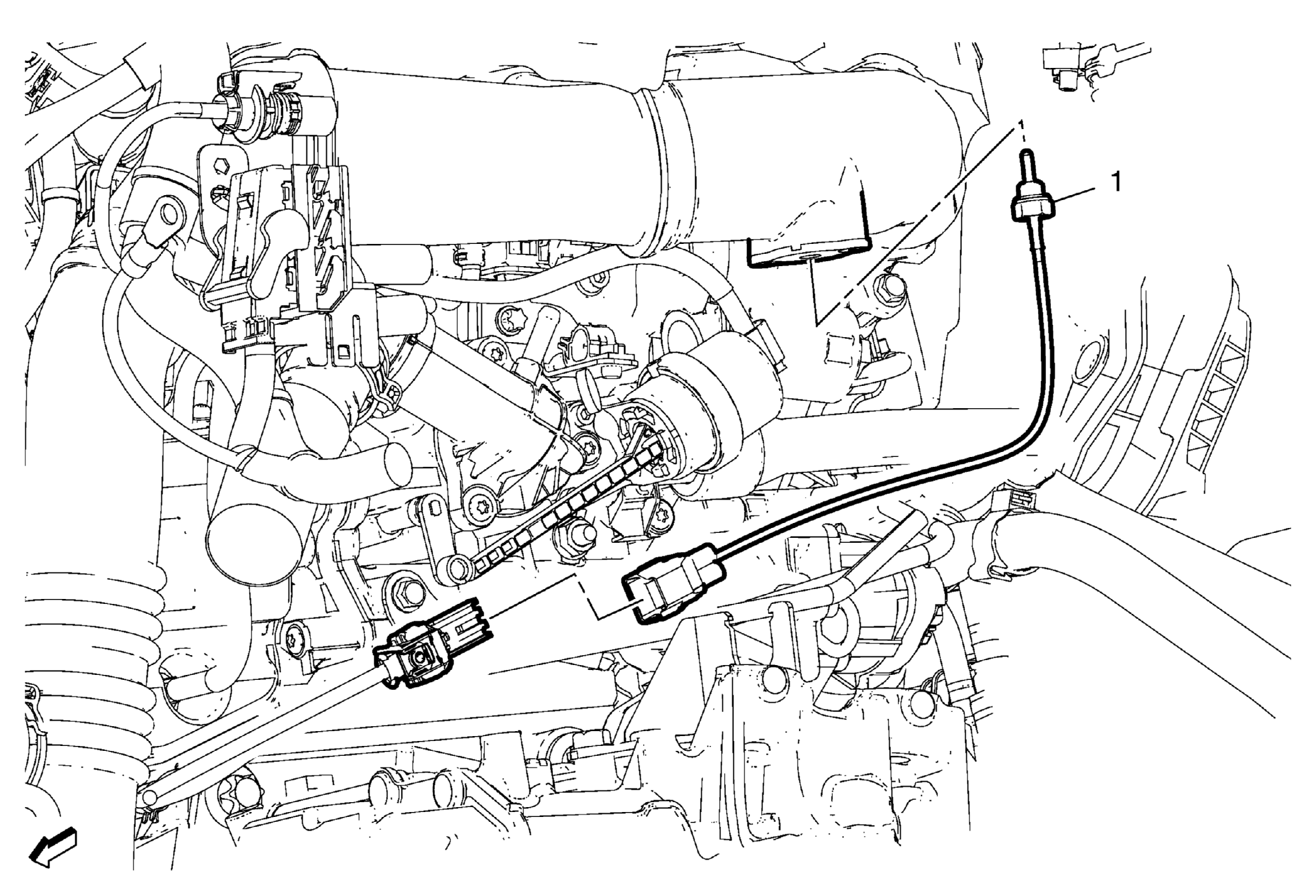

Fig 1: Charge Air Temperature Sensor - Charge Air Cooler Outlet Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the engine sight shield. Refer to Engine Sight Shield Replacement . Remove the ECM from battery tray and lay aside. Refer to Engine Control Module Replacement . Disconnect the charge air temperature sensor wiring harness plug. Unclip the charge air temperature sensor wiring harness plug from the retainer.
1	Charge Air Temperature Sensor CAUTION: Refer to Fastener Caution . Tighten 19 N.m (14 lb ft)

Callout

Component Name

Preliminary Procedures

Remove the engine sight shield. Refer to Engine Sight Shield Replacement .
Remove the ECM from battery tray and lay aside. Refer to Engine Control Module Replacement .
Disconnect the charge air temperature sensor wiring harness plug.
Unclip the charge air temperature sensor wiring harness plug from the retainer.

Charge Air Temperature Sensor

CAUTION: Refer to Fastener Caution .

Tighten
19 N.m (14 lb ft)
