Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the PCV heater from the air cleaner outlet duct. Refer to Positive Crankcase Ventilation Oil Separator Assembly Replacement .
  2. Loosen the 2 clamps (1).

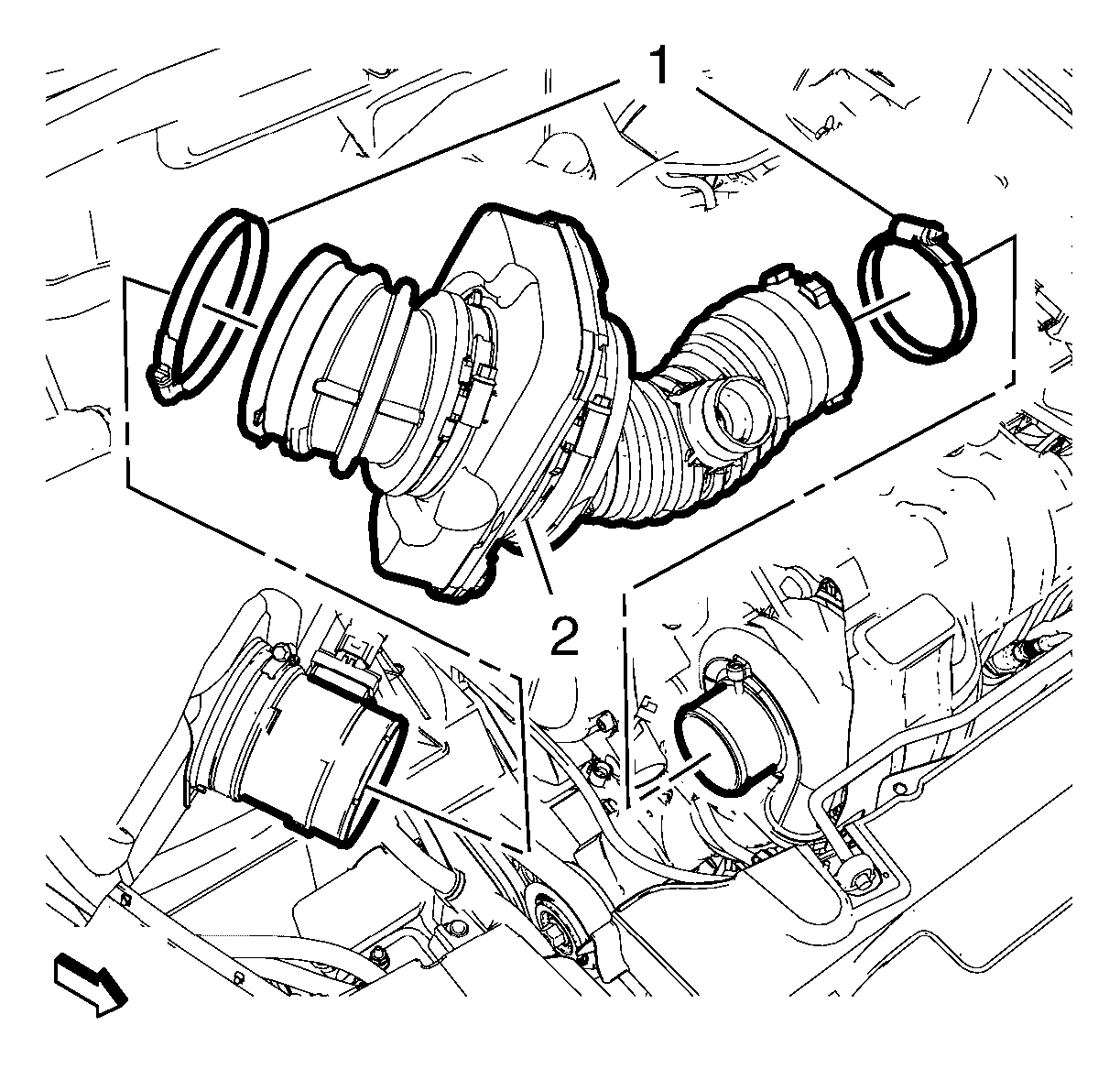

    Fig 1: Clamps And Air Cleaner Outlet Duct
    GM3216277Courtesy of GENERAL MOTORS COMPANY
  3. Remove the air cleaner outlet duct (2).
  4. Remove the 2 clamps (1) from the air cleaner outlet duct (2).
