Installation Procedure
WARNING: This page is about a different variant/trim than selected.

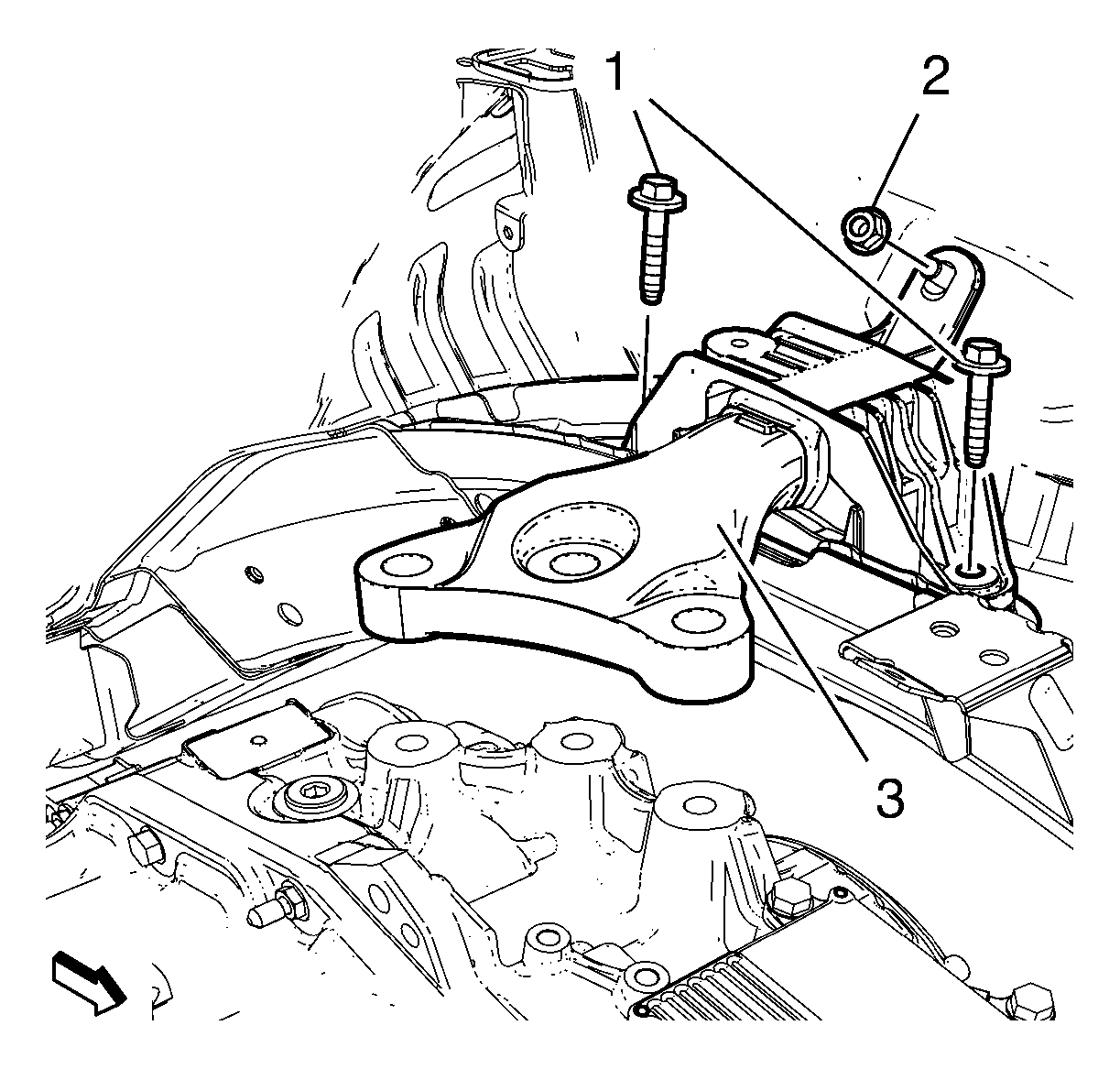

- Install the transmission mount (3).
- Install the 2 transmission mount bolts (1) and tighten to 62 N.m (46 lb ft).CAUTION: Refer to Fastener Caution .
- Install the transmission mount nut (2) and tighten to 62 N.m (46 lb ft).
- Install the 3 NEW transmission mount bolts (1) and tighten a first pass to 80 N.m (59 lb ft).
CAUTION: Refer to Torque-to-Yield Fastener Caution
- Tighten the 3 NEW transmission mount bolts (1) a final pass to an additional 60 - 75 degrees, using the EN-45059 meter.
- Remove the engine support fixture, refer to Engine Support Fixture .
- Install the battery tray. Refer to Battery Tray Replacement .
