Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the transmission range selector lever cable.
  2. Install the transmission range selector lever cable grommet (2) to the bulkhead (1).

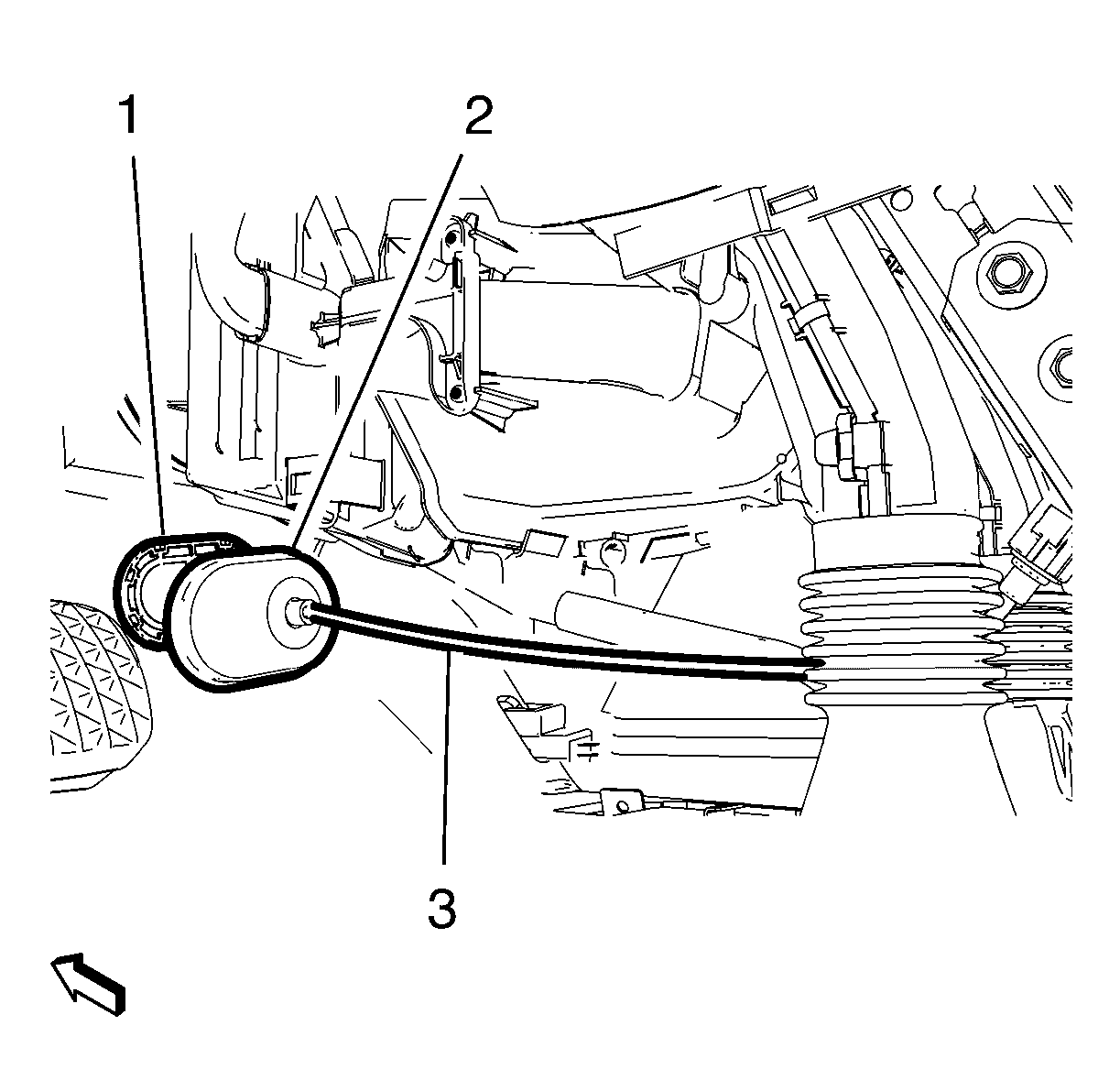

    Fig 1: Transmission Range Selector Lever Cable, Grommet & Bulkhead
    GM2834260Courtesy of GENERAL MOTORS COMPANY
  3. Connect the transmission range selector cable end terminal to the shifter pin (2).

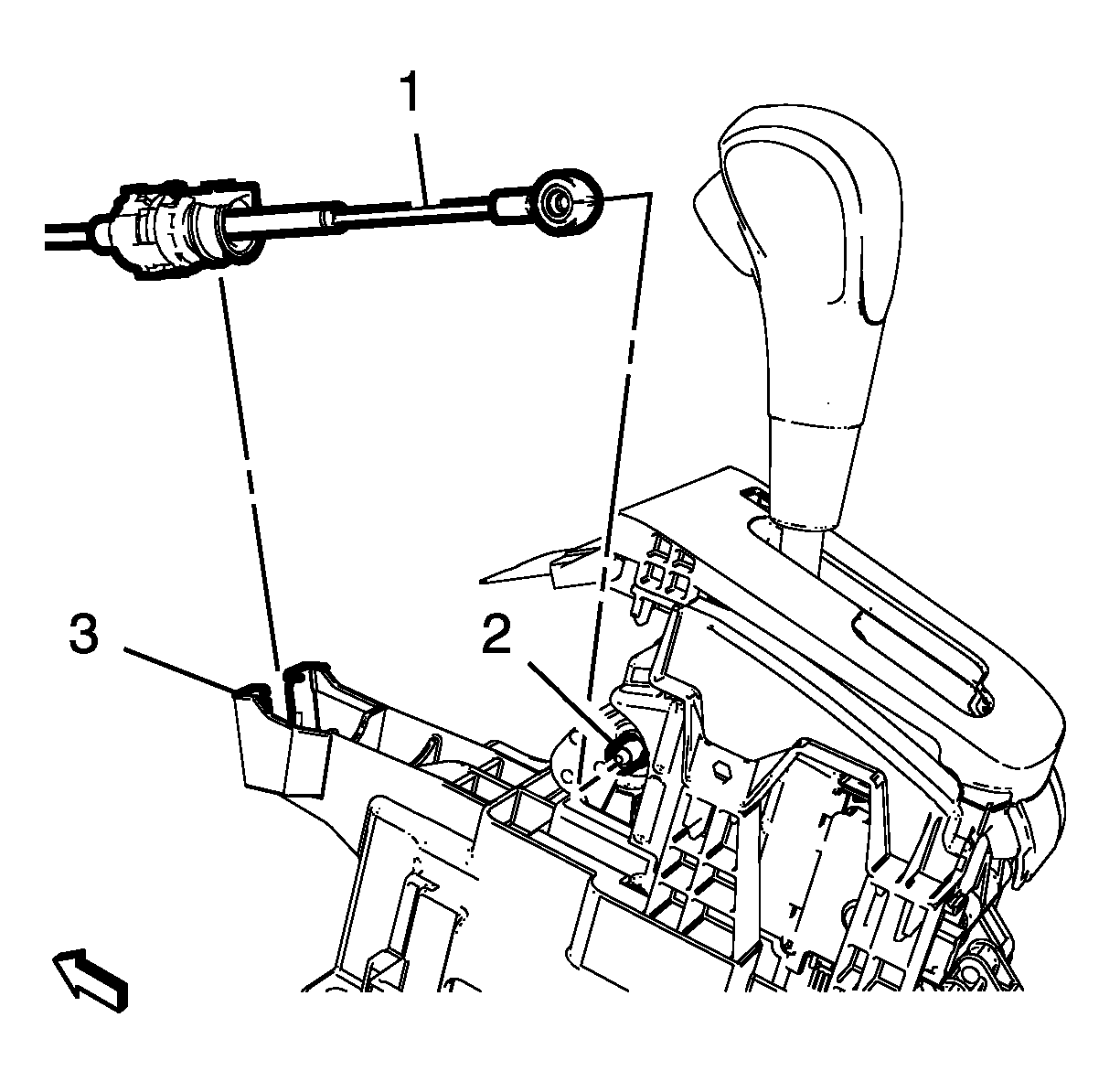

    Fig 2: Transmission Range Selector Lever Cable And Bracket
    GM2373479Courtesy of GENERAL MOTORS COMPANY
  4. Press the locking tabs inward and clip in the transmission range selector lever cable (1) to the transmission control (3).
  5. Press the locking tabs (2) inward (arrows) and clip in the transmission range selector lever cable to the bracket (3).

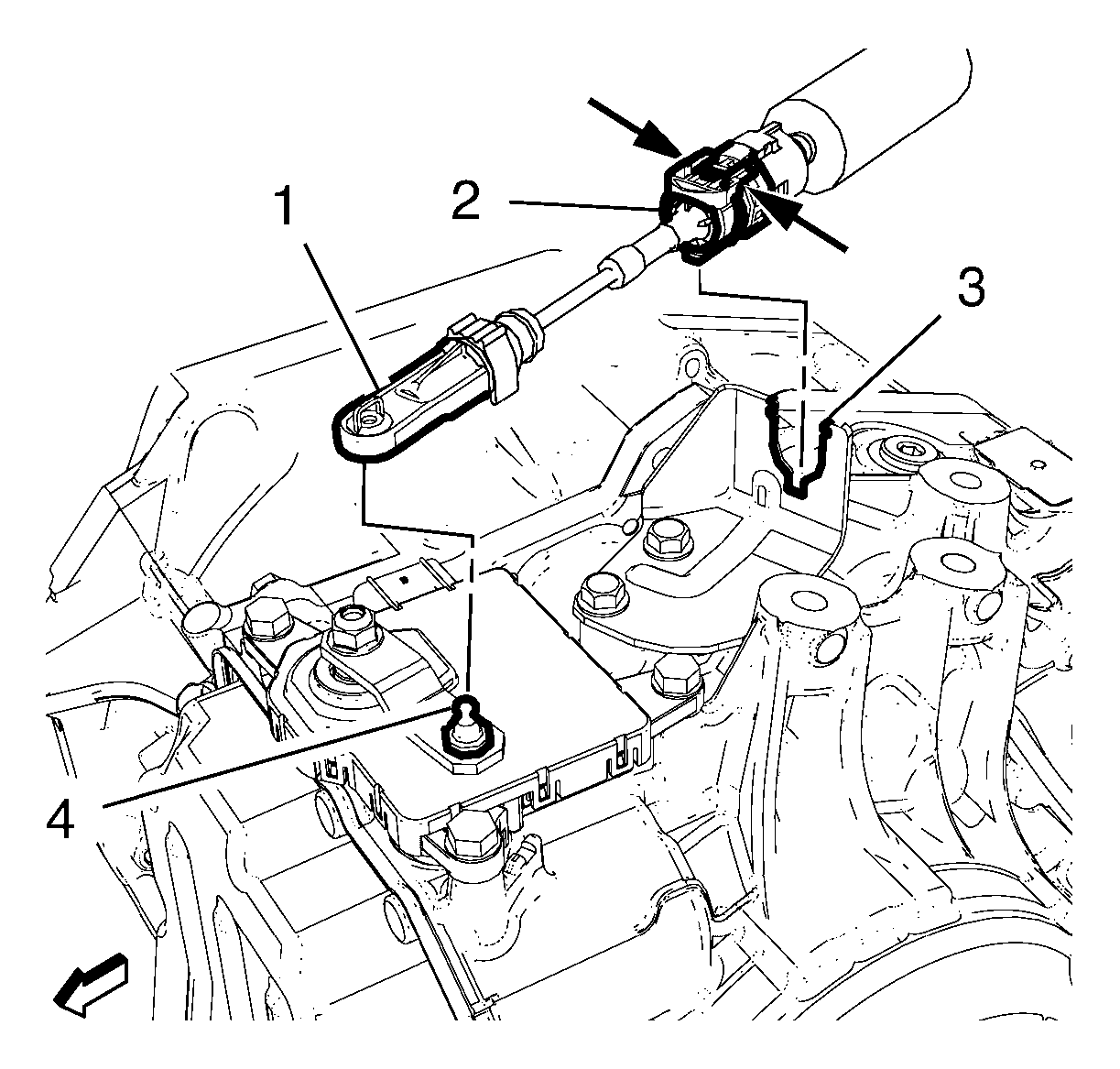

    Fig 3: Transmission Range Selector Lever Cable End Terminal
    GM3221607Courtesy of GENERAL MOTORS COMPANY
  6. Connect the range selector lever cable end terminal (1) to the range selector lever (4).
  7. Adjust the range selector cable. Refer to Range Selector Lever Cable Adjustment .
  8. Install the front floor console. Refer to Front Floor Console Replacement .
  9. Install the battery tray. Refer to Battery Tray Replacement .
