Radiator Grille Emblem/Nameplate Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

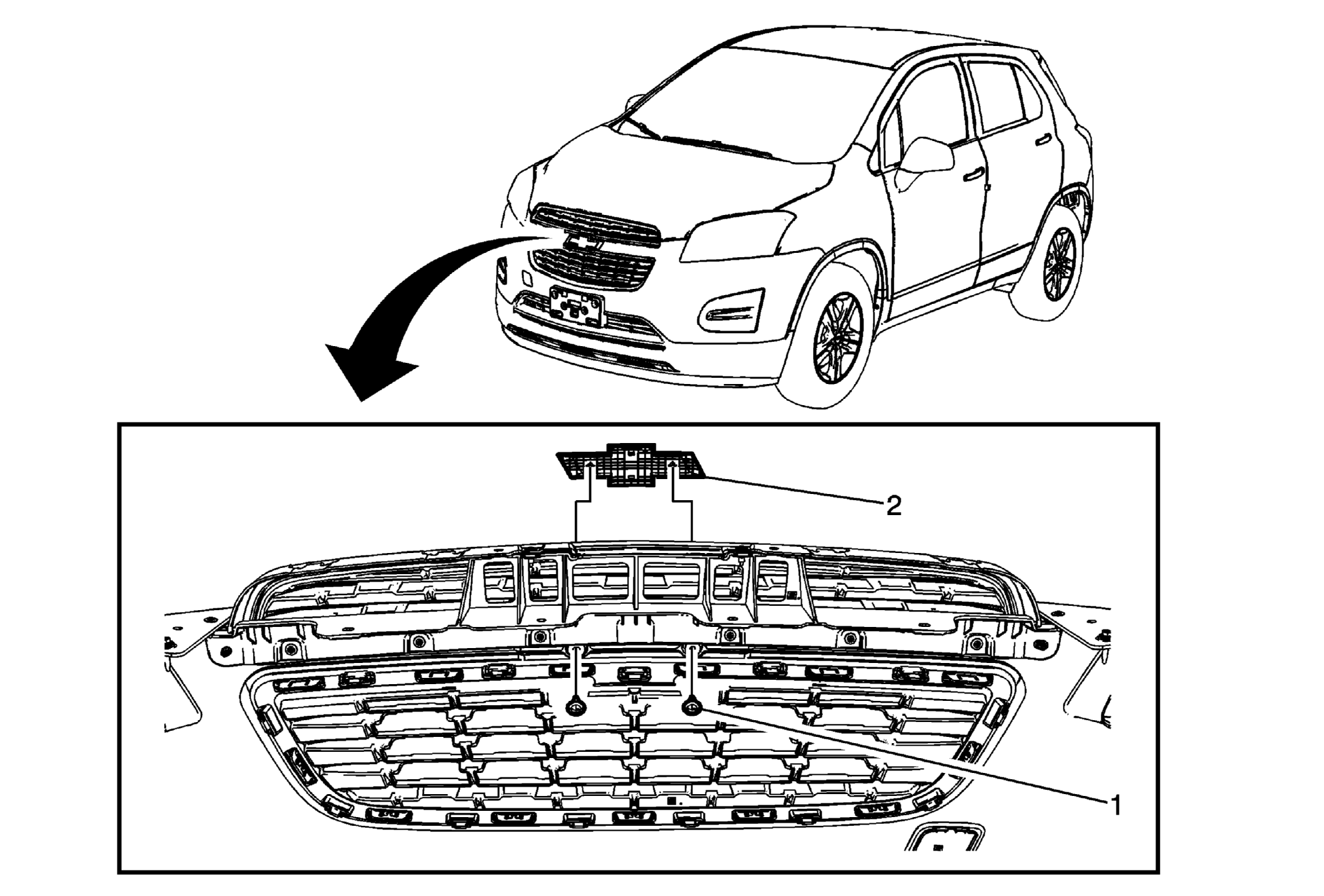

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax) . |
|
| 1 | Radiator Grille Emblem / Nameplate Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Radiator Grille Emblem / Nameplate Procedure Using a suitable trim tool, release the two locking tabs. |
