Front Opening Upper Cover Replacement (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

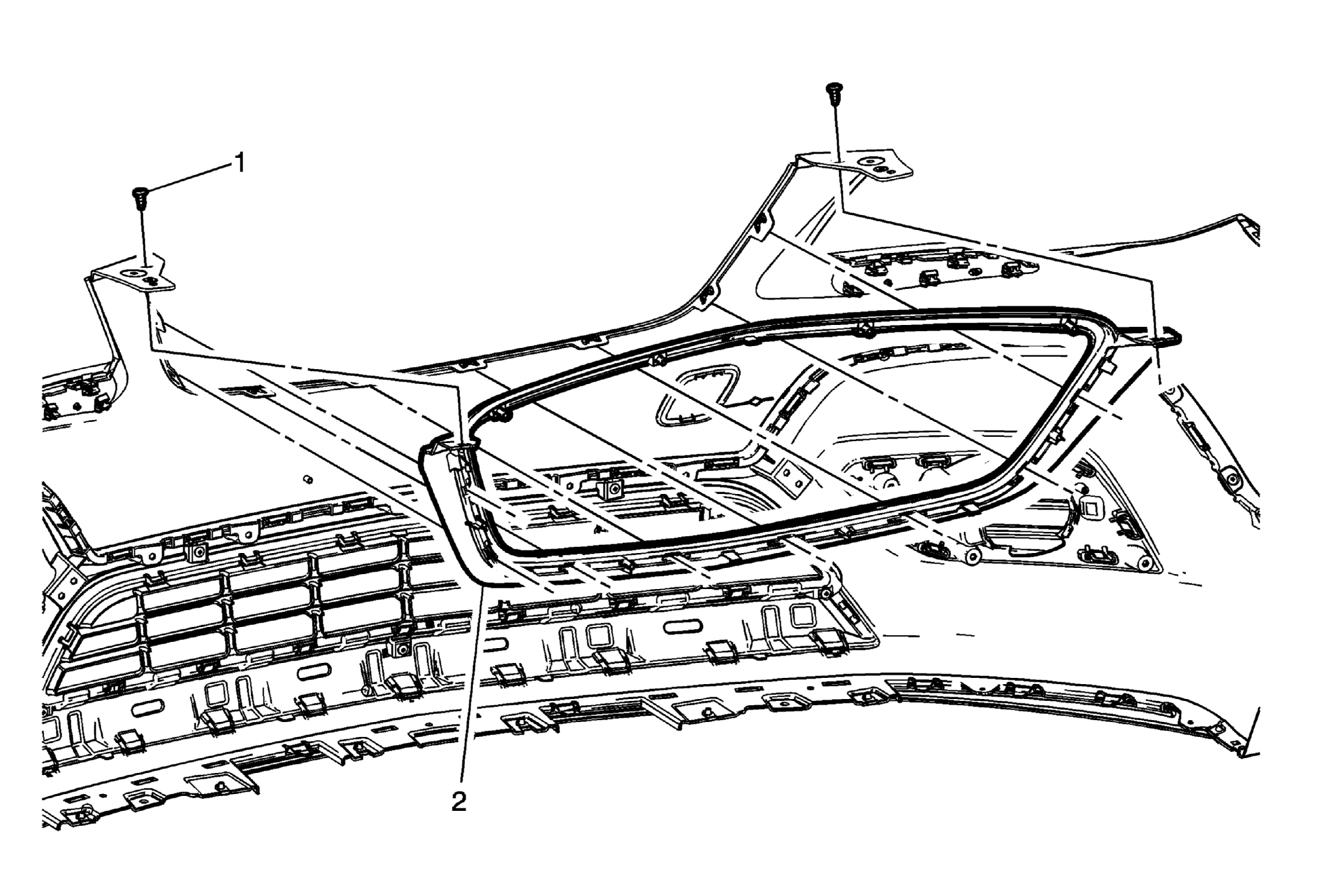

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front upper grille. Refer to Front Upper Grille Replacement (Encore) . |
|
| 1 | Front Opening Upper Cover Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Opening Upper Cover Procedure With a suitable tool release the 8 locking tabs and pull from the front bumper fascia. |
