Front Upper Grille Replacement (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

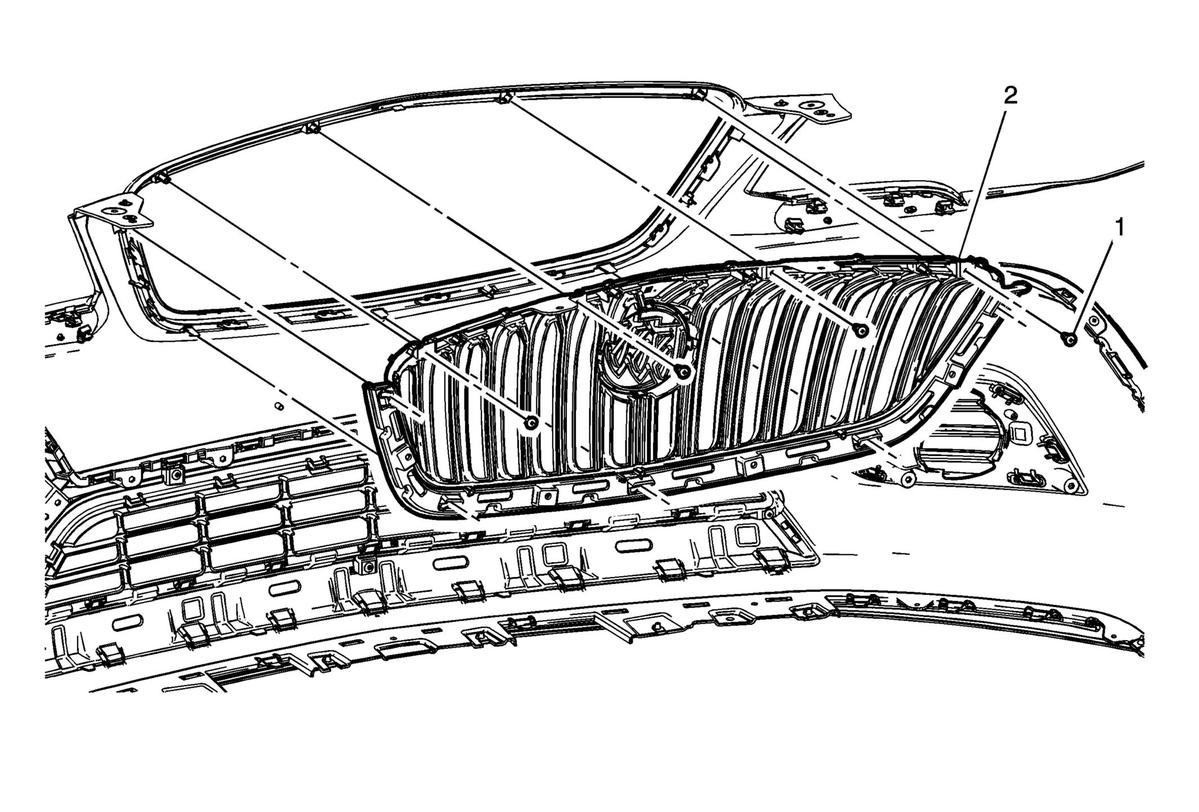

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front grille opening cover. Refer to Front Grille Opening Cover Replacement (Encore) . |
|
| 1 | Front Upper Grille Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Upper Grille Procedure Use a suitable tool to release the 5 locking tabs and pull the front upper grille from the radiator opening upper cover. |
