Front Grille Emblem/Nameplate Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front grille opening cover. Refer to Front Grille Opening Cover Replacement (Encore) or Radiator Grille Opening Cover Replacement (Trax) . |
|

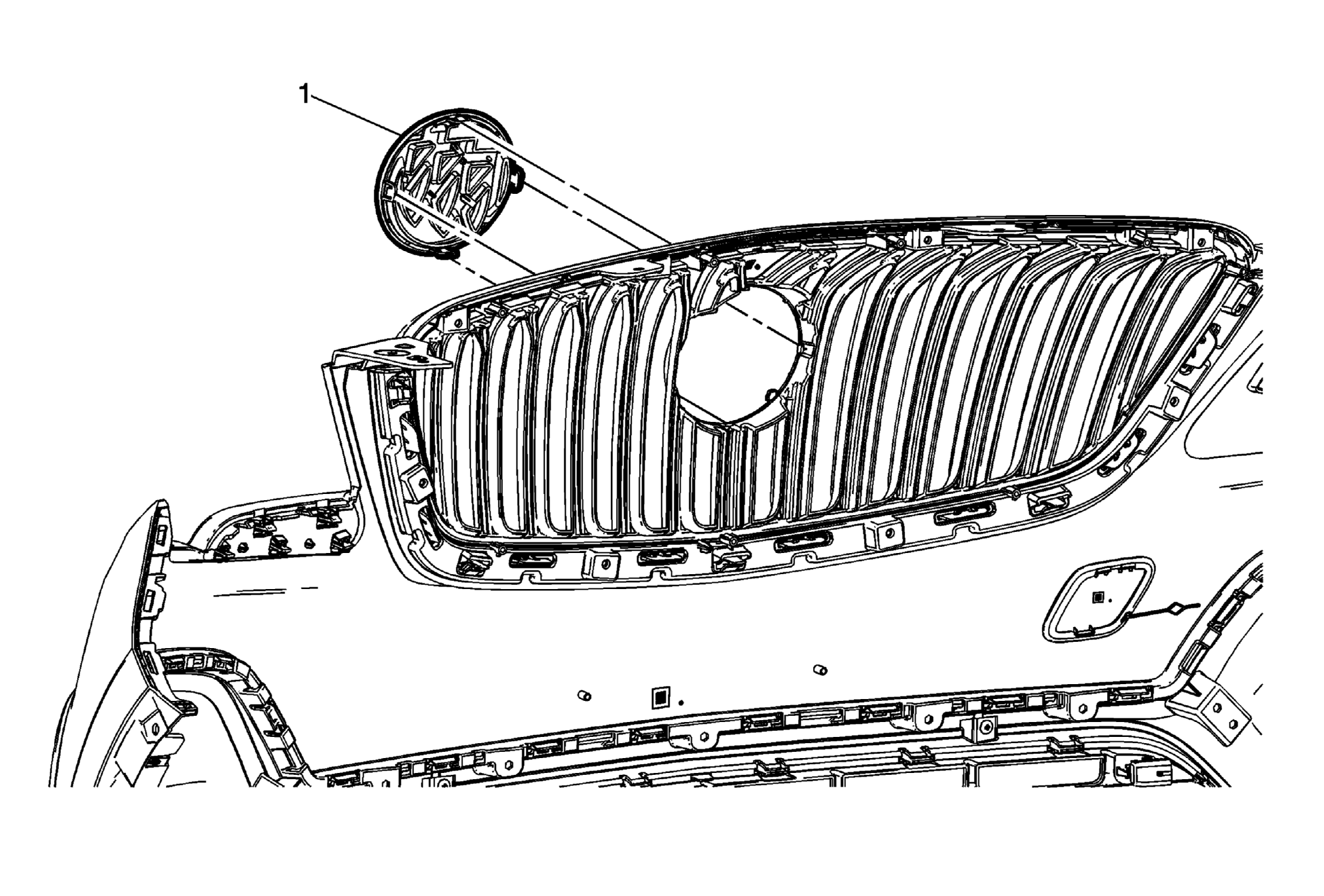

| 1 | Front Grille Emblem Procedure Use a suitable tool to release the 4 locking tabs and pull the front grille emblem from the front upper grille. |
