Radiator Grille Opening Cover Replacement (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

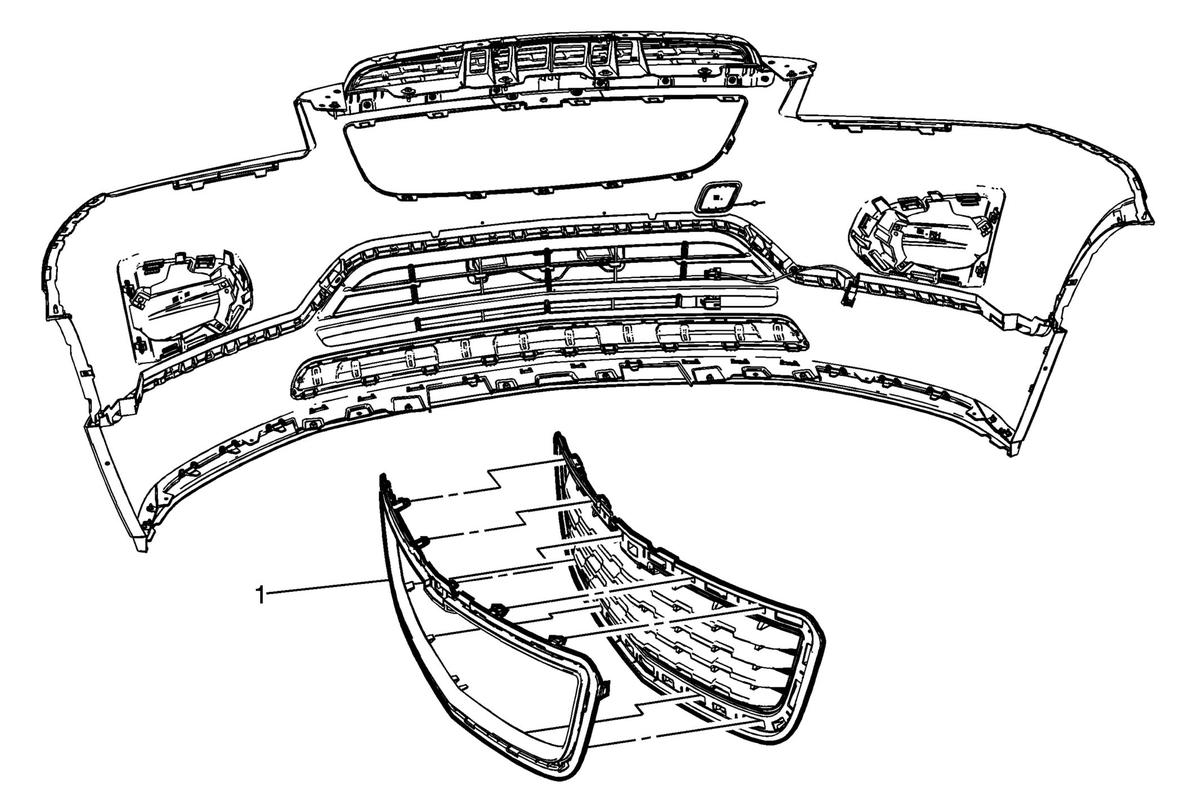

Fig 1: Radiator Grille Opening Cover (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the radiator grille. Refer to . Front Grille Replacement (Trax)
1	Radiator Grille Opening Cover Procedure Place the radiator grille face down on a clean protected surface. Using a suitable trim tool, release the thirteen locking tabs on the radiator grille opening cover and remove from the radiator grill. NOTE: Each individual tab on the radiator grille opening cover must be secure to each slot in the radiator grille prior to re-assemble of the radiator grill to the fascia.

Callout

Component Name

Preliminary Procedure
Remove the radiator grille. Refer to . Front Grille Replacement (Trax)

Radiator Grille Opening Cover
Procedure

Place the radiator grille face down on a clean protected surface.
Using a suitable trim tool, release the thirteen locking tabs on the radiator grille opening cover and remove from the radiator grill.

NOTE:

Each individual tab on the radiator grille opening cover must be secure to each slot in the radiator grille prior to re-assemble of the radiator grill to the fascia.
