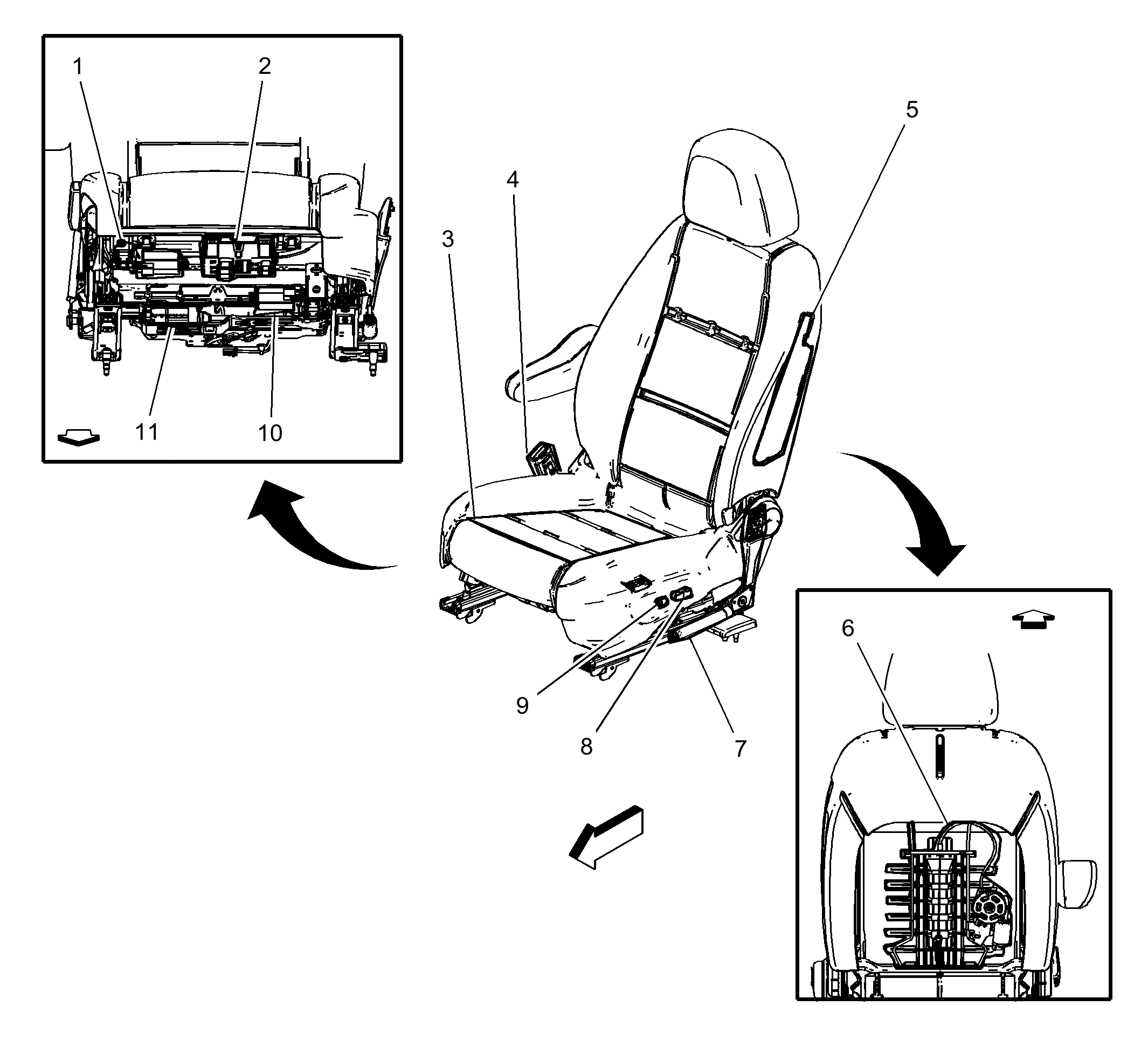

Driver Seat Components (Trax with AG9)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1: M50D Seat Front Vertical Motor - Driver M50D Seat Front Vertical Motor - Driver |
| 2: K29 Seat Heating Control Module (KA1) K29 Seat Heating Control Module X1K29 Seat Heating Control Module X2K29 Seat Heating Control Module X3 |
| 3: E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion |
| 4: B153D Seat Belt Buckle - Driver B153D Seat Belt Buckle - Driver |
| 5: F106D Seat Side Air Bag - Driver F106D Seat Side Air Bag - Driver |
| 6: M53D Seat Lumbar Support Motor - Driver M53D Seat Lumbar Support Motor - Driver |
| 7: F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver |
| 8: S64D Seat Adjuster Switch - Driver S64D Seat Adjuster Switch - Driver |
| 9: S65D Seat Lumbar Support Switch - Driver S65D Seat Lumbar Support Switch - Driver |
| 10: M55D Seat Rear Vertical Motor - Driver M55D Seat Rear Vertical Motor - Driver |
| 11: M51D Seat Horizontal Motor - Driver M51D Seat Horizontal Motor - Driver |
