S65D Seat Lumbar Support Switch - Driver
WARNING: This page is about a different car, the 2015 Chevrolet Trax. However, it is still accessible from the selected car via links, so may be relevant.
|
|

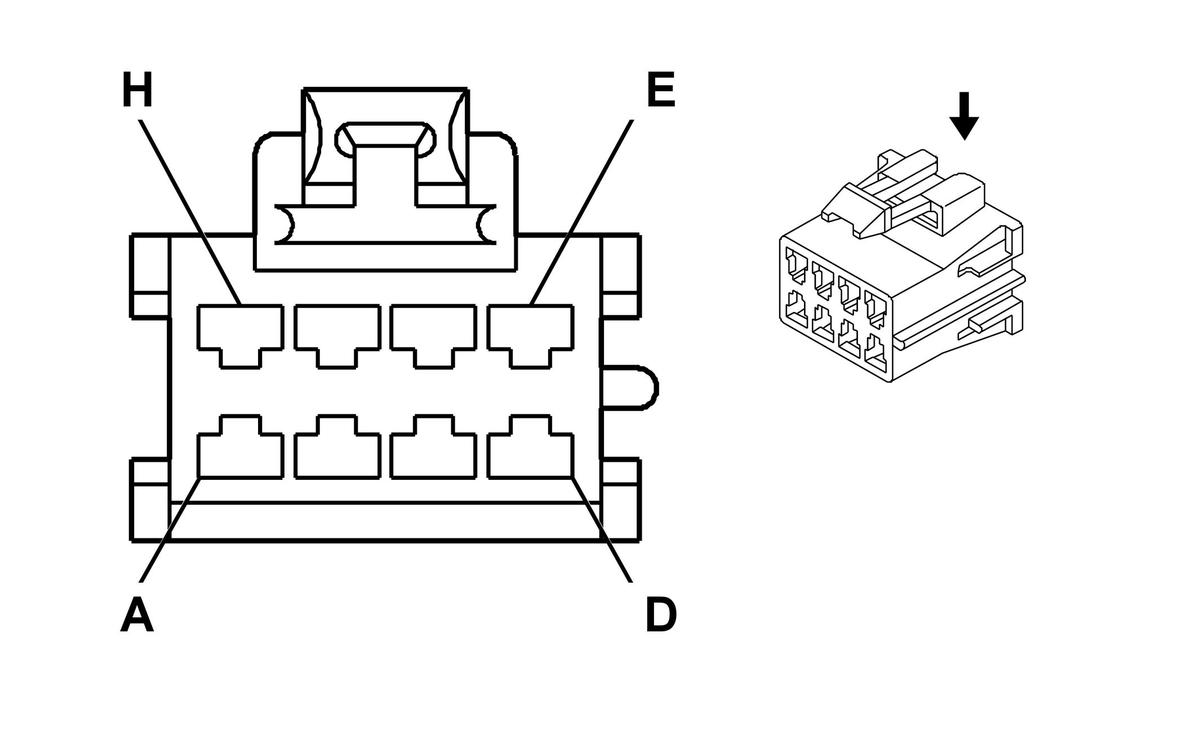

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 12089287
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F 280 Metri-Pack Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Available |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
YE/BN |
768 |
Driver Power Seat Lumbar Motor Up Control |
I |
- |
| B - C |
- |
- |
- |
Not Occupied |
- |
- |
| D |
0.5 |
YE/BU |
767 |
Driver Power Seat Lumbar Motor Down Control |
I |
- |
| E |
0.5 |
RD/GY |
2140 |
Battery Positive Voltage |
I |
- |
| F - G |
- |
- |
- |
Not Occupied |
- |
- |
| H |
0.5 |
BK |
850 |
Ground |
I |
- |
