Windshield Washer Pump Hose Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

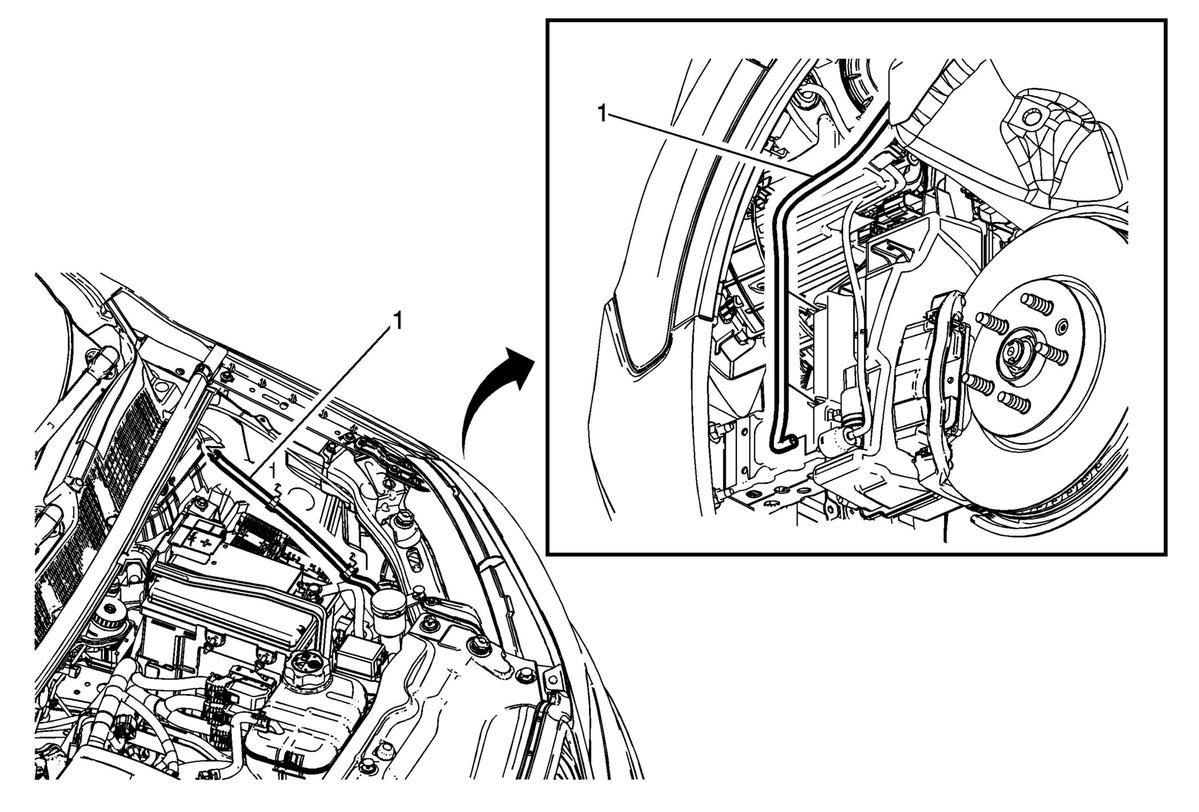

Fig 1: Windshield Washer Pump Hose (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Reposition the front compartment fuse block. Refer to Front Compartment Fuse Block Replacement . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Encore) .
1	Windshield Washer Pump Hose Procedure Place a collecting container under the windshield washer solvent container. Disconnect the windshield washer pump hose from the windshield washer pump. Lower the vehicle. Disconnect the windshield washer pump hose from the connection piece at the air inlet grille panel. Remove the windshield washer pump hose from the two clips on the windshield washer solvent container. NOTE: Observe the routing of the windshield washer pump hose for installation purposes.

Callout

Component Name

Preliminary Procedures

Reposition the front compartment fuse block. Refer to Front Compartment Fuse Block Replacement .
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Encore) .

Windshield Washer Pump Hose

Procedure

Place a collecting container under the windshield washer solvent container.
Disconnect the windshield washer pump hose from the windshield washer pump.
Lower the vehicle.
Disconnect the windshield washer pump hose from the connection piece at the air inlet grille panel.
Remove the windshield washer pump hose from the two clips on the windshield washer solvent container.

NOTE:

Observe the routing of the windshield washer pump hose for installation purposes.
