Rear Window Wiper Motor Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

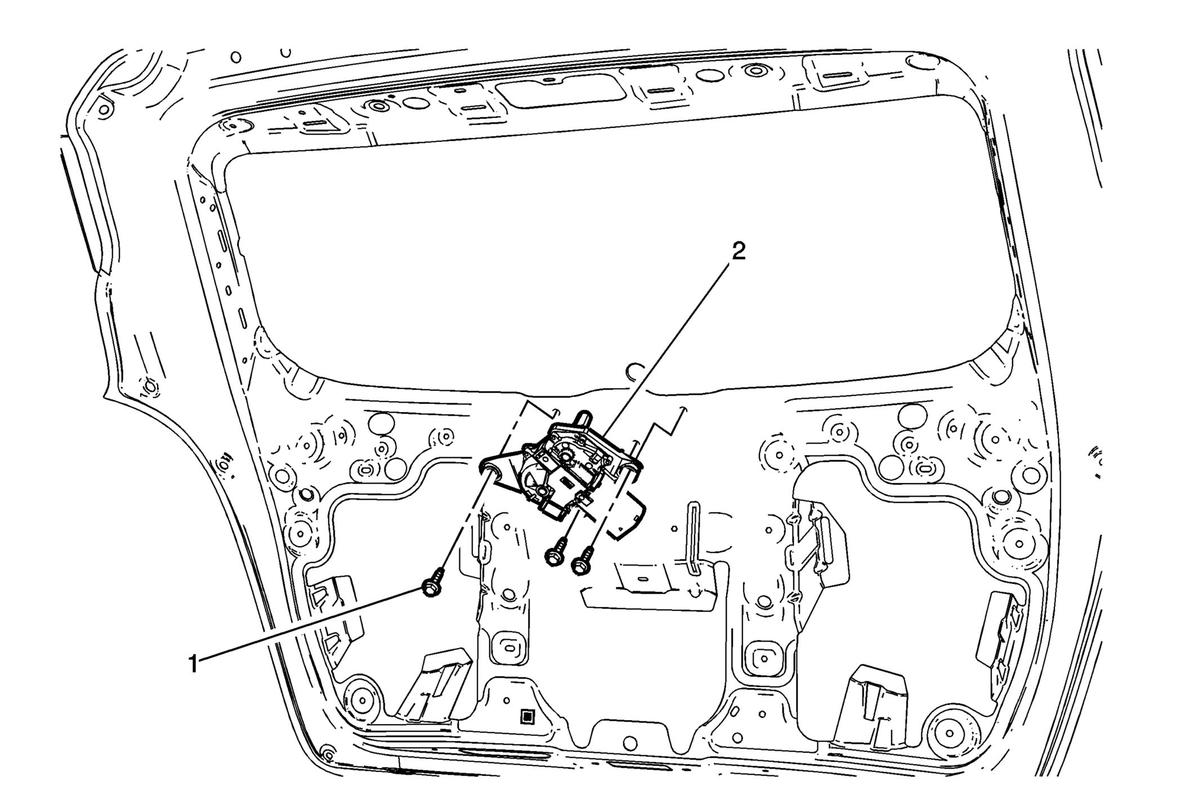

Fig 1: Rear Window Wiper Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open and support the liftgate assembly. Remove the rear window wiper arm assembly. Refer to Rear Window Wiper Arm Replacement . Remove the rear liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement . Disconnect the rear window wiper motor electrical connector.
1	Rear Window Wiper Motor Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Window Wiper Motor Procedure Pull the rear window wiper motor inward from the rear liftgate. Inspect the rear window wiper motor window grommet for damage. Replace if needed.

Callout

Component Name

Preliminary Procedure

Open and support the liftgate assembly.
Remove the rear window wiper arm assembly. Refer to Rear Window Wiper Arm Replacement .
Remove the rear liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement .
Disconnect the rear window wiper motor electrical connector.

Rear Window Wiper Motor Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Rear Window Wiper Motor

Procedure

Pull the rear window wiper motor inward from the rear liftgate.
Inspect the rear window wiper motor window grommet for damage. Replace if needed.
