Liftgate Lower Trim Finish Panel Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

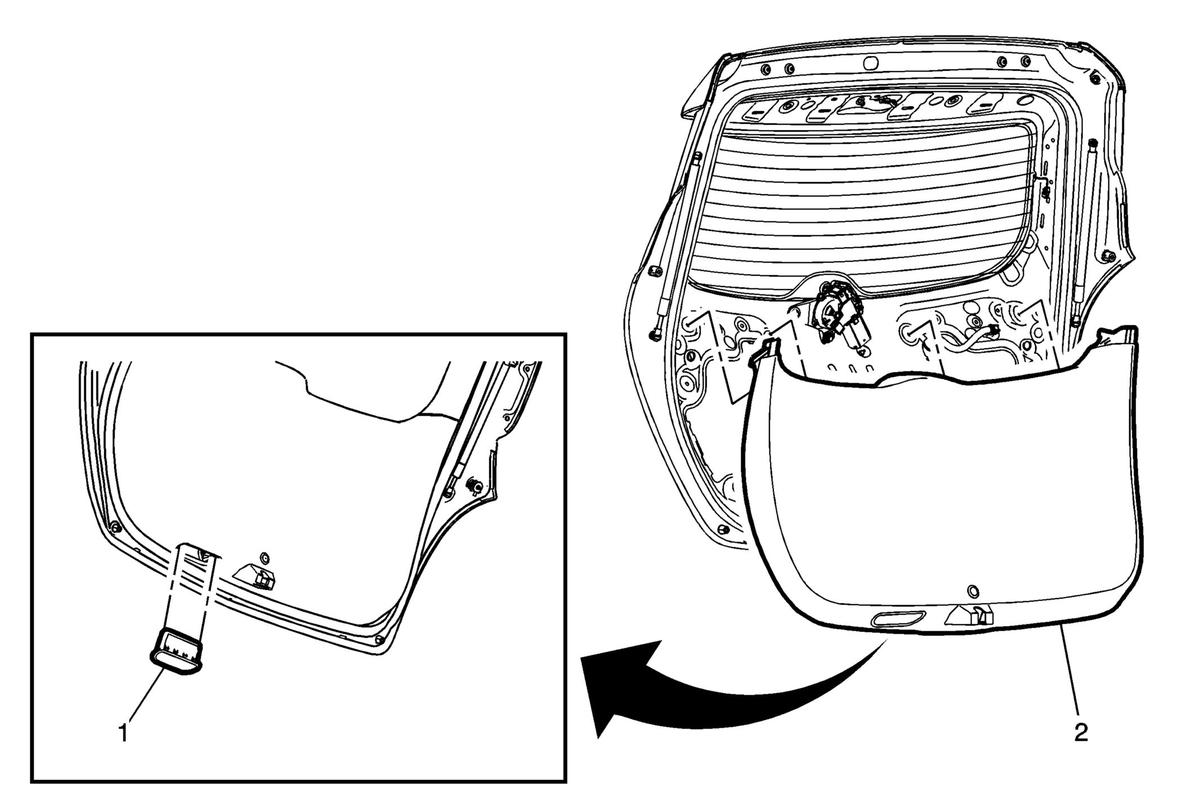

Fig 1: Liftgate Lower Trim Finish Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate upper side trim finish panel. Refer to Liftgate Upper Side Trim Finish Panel Replacement .
1	Liftgate Inside Pull Handle Procedure Squeeze and pull the inside handle to disengage from liftgate trim finish panel.
2	Liftgate Lower Trim Finish Panel Assembly Procedure Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly. Start at the top clip on the right-hand side of liftgate lower trim finish panel. Disconnect the electrical connector, if equipped.

Callout

Component Name

Preliminary Procedure
Remove the liftgate upper side trim finish panel. Refer to Liftgate Upper Side Trim Finish Panel Replacement .

Liftgate Inside Pull Handle
Procedure
Squeeze and pull the inside handle to disengage from liftgate trim finish panel.

Liftgate Lower Trim Finish Panel Assembly

Procedure

Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly.
Start at the top clip on the right-hand side of liftgate lower trim finish panel.
Disconnect the electrical connector, if equipped.
