Rear Window Washer Nozzle Replacement (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
|
Preliminary Procedures
- Open and support the liftgate.
- Remove the rear end spoiler. Refer to Rear End Spoiler Replacement
.
|
| 1 |

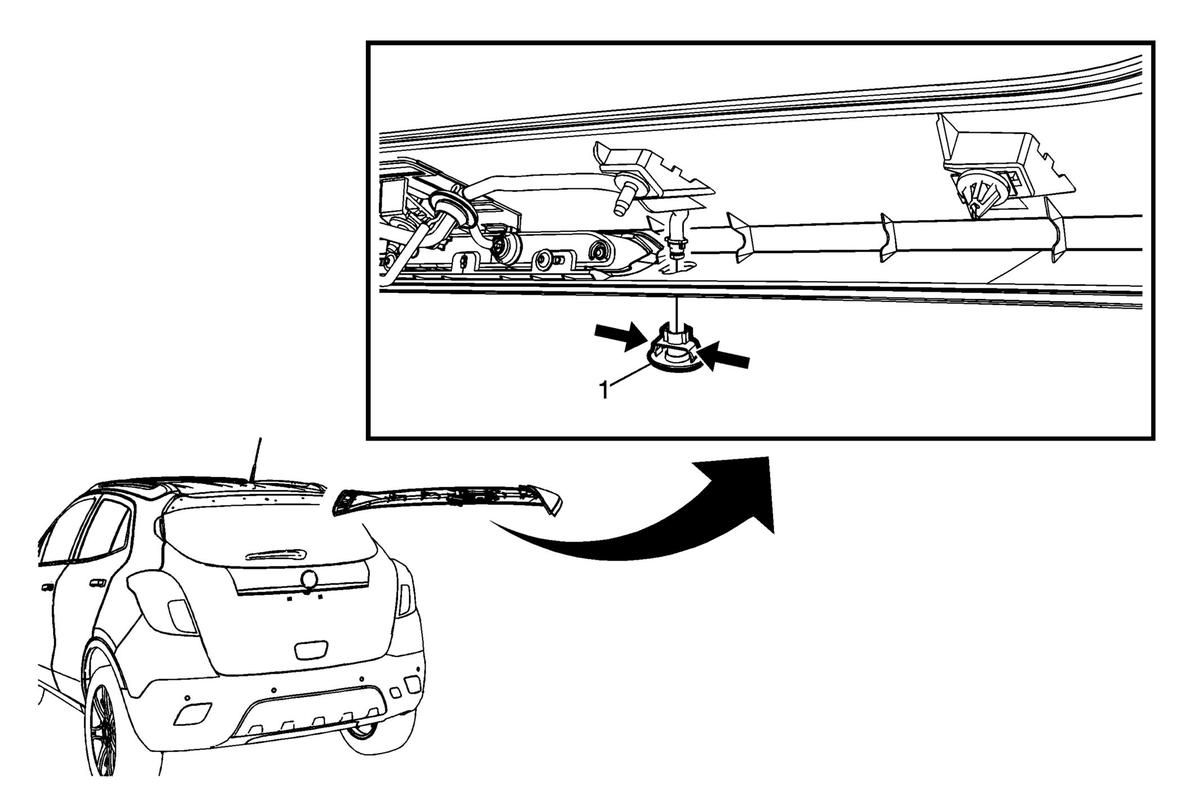

Rear Window Washer Nozzle Procedure
- Disconnect the rear window washer hose from the rear window washer nozzle.
- Pinch the two tabs (arrows) on the rear window washer nozzle and push the nozzle out of the rear end spoiler.
- Remove the rear window washer nozzle from the rear end spoiler.
|
