Rear End Spoiler Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

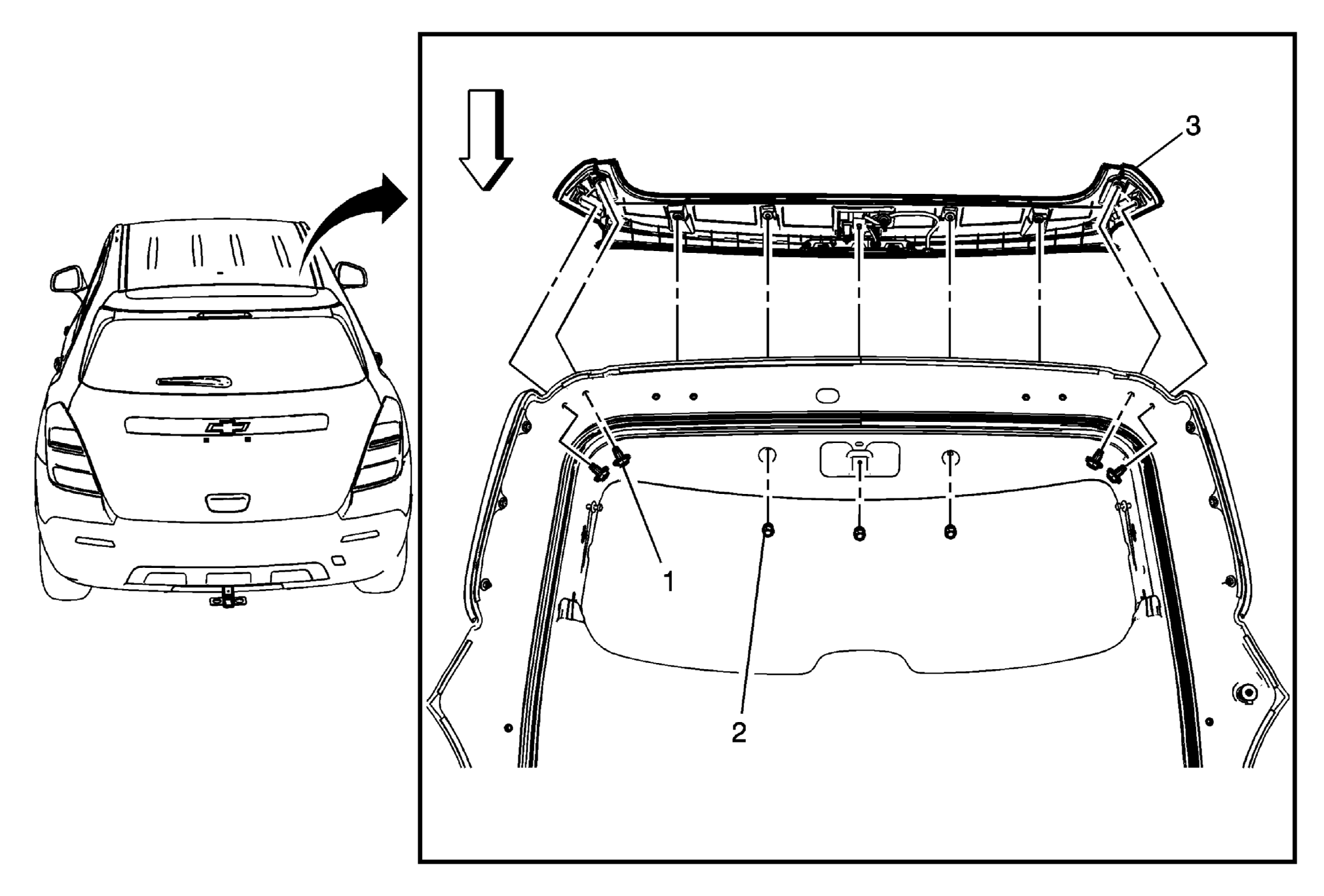

Fig 1: Rear End Spoiler

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open and support the liftgate. Remove the liftgate upper center trim finish panel. Refer to Liftgate Upper Center Trim Finish Panel Replacement .
1	Rear End Spoiler Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Rear End Spoiler Nut (Qty: 3) Tighten 5 N.m (44 lb in)
3	Rear End Spoiler Procedure Apply masking tape to protect the area around spoiler. Using a trim type release tool disengage the two rear end spoiler clips. Remove the grommet from the liftgate outer panel. Disconnect the electrical harness connector. Disconnect the rear washer hose. Remove the rear end spoiler. Transfer parts as needed.
