Rear Side Door Weatherstrip Replacement - Door Side

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

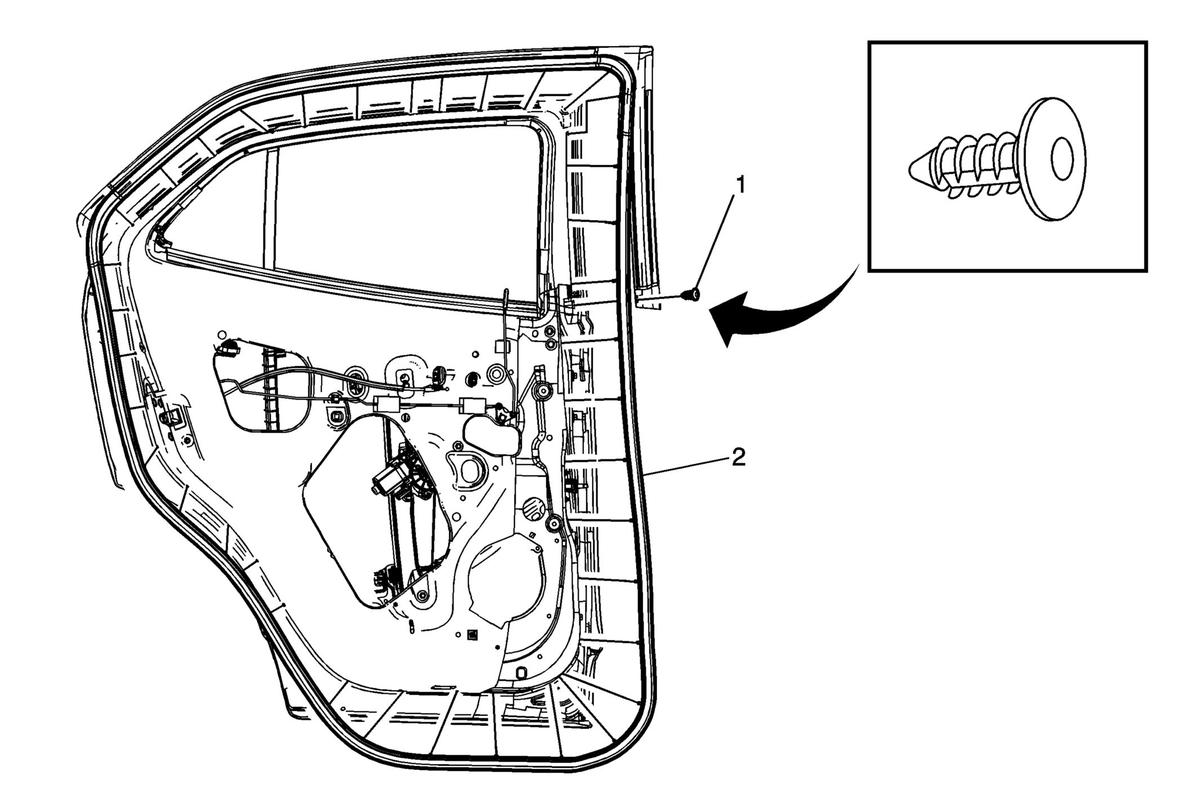

Fig 1: Rear Side Door Weatherstrip - Door Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Weatherstrip Retainers Procedure Open the front side door to the fully open position. Remove the rear side door check link bolt from the body side only . Refer to Rear Side Door Check Replacement . Use a suitable tool, remove the push-in retainers from the around of the door.
2	Rear Side Door Weatherstrip Procedure Ensure that the weatherstrip is fully seated in the door frame retainer. Verify proper sealing to the door opening. NOTE: Water test the door area after replacing the door weatherstrip to ensure no leaks.

Callout

Component Name

Rear Side Door Weatherstrip Retainers

Procedure

Open the front side door to the fully open position.
Remove the rear side door check link bolt from the body side only . Refer to Rear Side Door Check Replacement .
Use a suitable tool, remove the push-in retainers from the around of the door.

Rear Side Door Weatherstrip

Procedure

Ensure that the weatherstrip is fully seated in the door frame retainer.
Verify proper sealing to the door opening.

NOTE:

Water test the door area after replacing the door weatherstrip to ensure no leaks.
