Rear Side Door Check Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

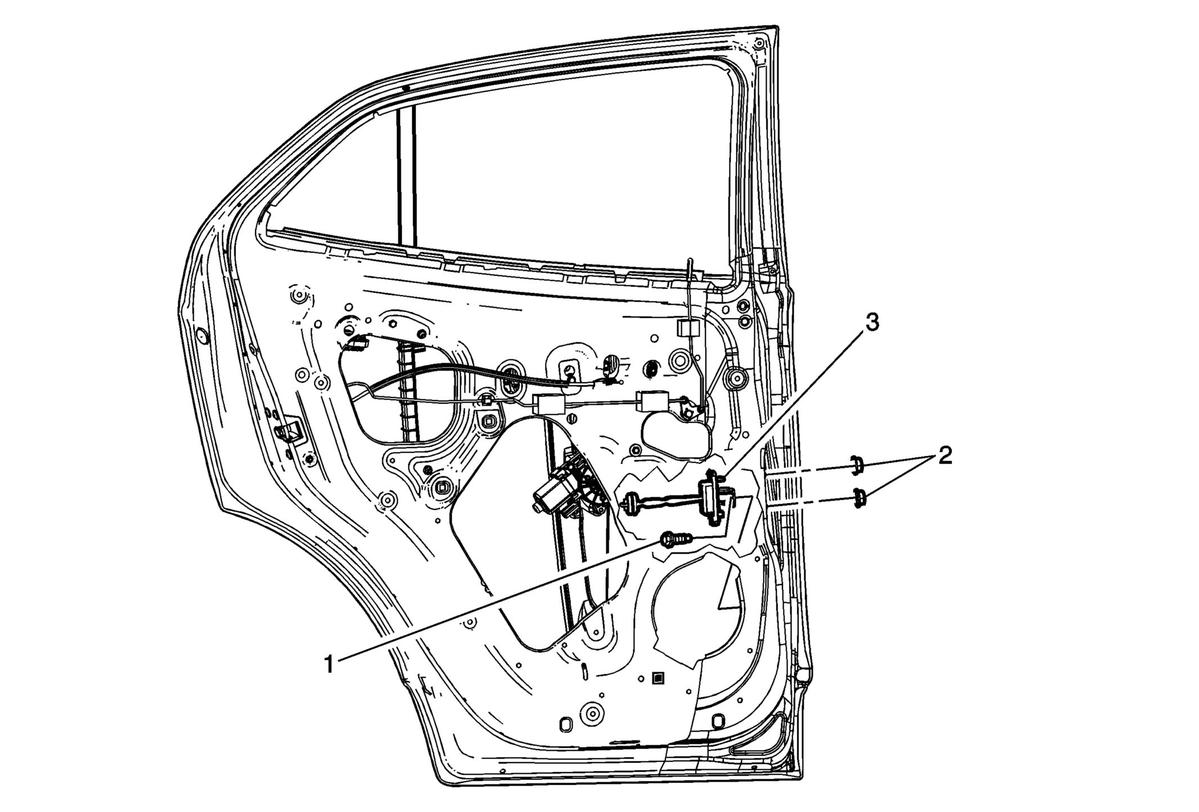

Fig 1: Rear Side Door Check

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Move the window to the full up position. Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement . Remove the rear door speaker. Refer to Radio Front Side Door Speaker Replacement .
1	Rear Side Door Check Link Bolt to Body CAUTION: Refer to Fastener Caution Tighten 22 N.m (16 lb ft)
2	Rear Side Door Check Link Nut (Qty: 2) Procedure Remove the water deflector. Tighten 9 N.m (80 lb in)
3	Rear Side Door Check Link Assembly
