Rear Side Door Trim Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

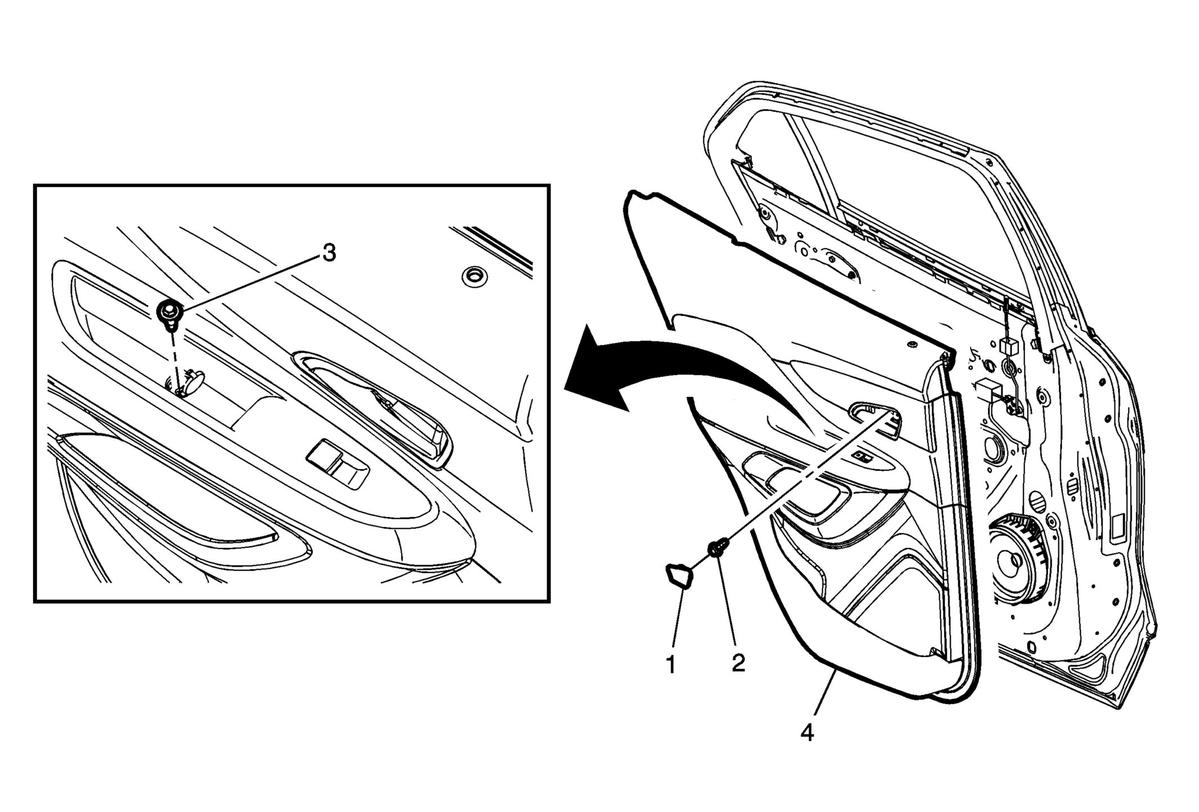

Fig 1: Rear Side Door Trim

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Inside Handle Bolt Finish Cap Procedure Pull handle back to remove cap. Use suitable tool to unsnap.
2	Rear Side Door Inside Handle Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Rear Side Door Pull Handle Fastener Procedure Use a small flat-bladed tool to open the rear side door trim integral cap to access the fastener. Tighten 2.5 N.m (22 lb in)
4	Rear Side Door Trim Assembly Procedure Use the appropriate plastic trim tool to aid in the removal of the door trim. Pull upwards on the door lock retainer cable to disengage. Disconnect the electrical connector.
