Hood Hinge Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

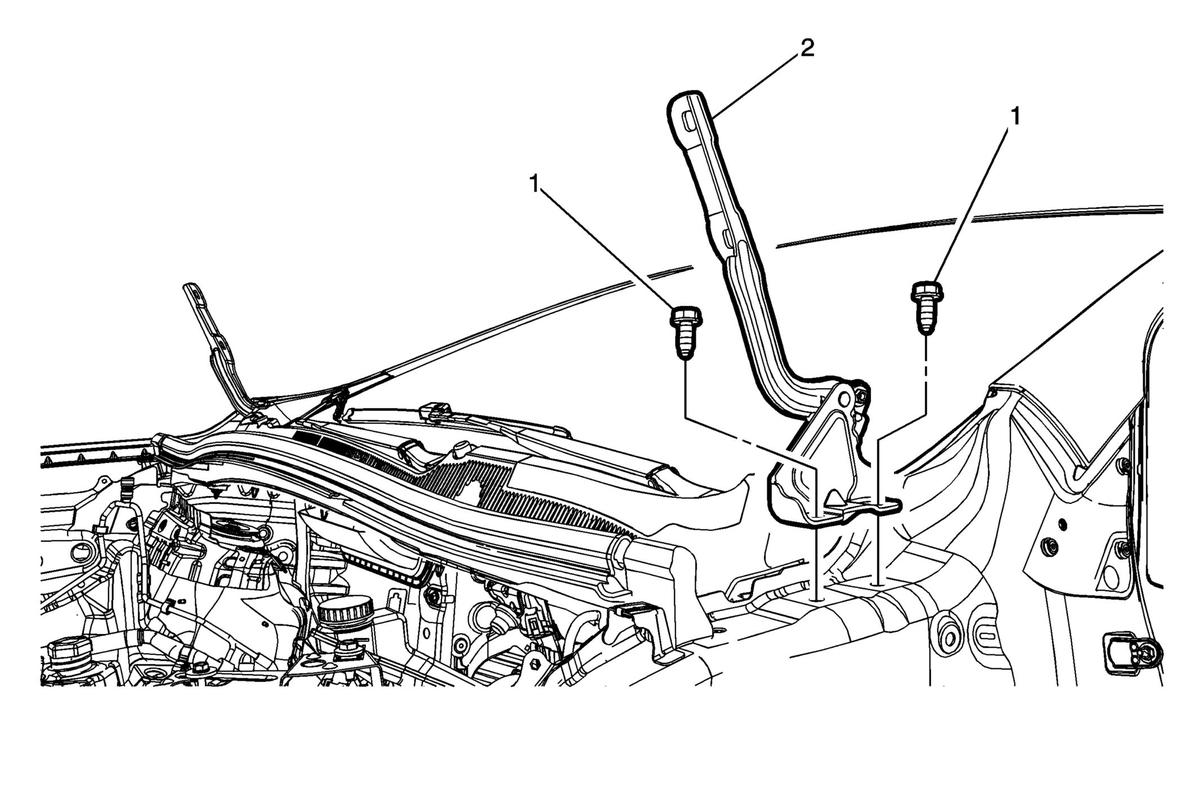

Fig 1: Hood Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the hood. Refer to Hood Replacement (Trax) Hood Replacement (Encore) . Remove the front fender. Refer to Front Fender Replacement .
1	Hood Hinge Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Hood Hinge Procedure Adjust the hood and hinge if needed. Refer to Hood Adjustment (Trax) Hood Adjustment (Encore) .

Callout

Component Name

Preliminary Procedures

Remove the hood. Refer to Hood Replacement (Trax) Hood Replacement (Encore) .
Remove the front fender. Refer to Front Fender Replacement .

Hood Hinge Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

Hood Hinge
Procedure
Adjust the hood and hinge if needed. Refer to Hood Adjustment (Trax) Hood Adjustment (Encore) .
