Hood Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

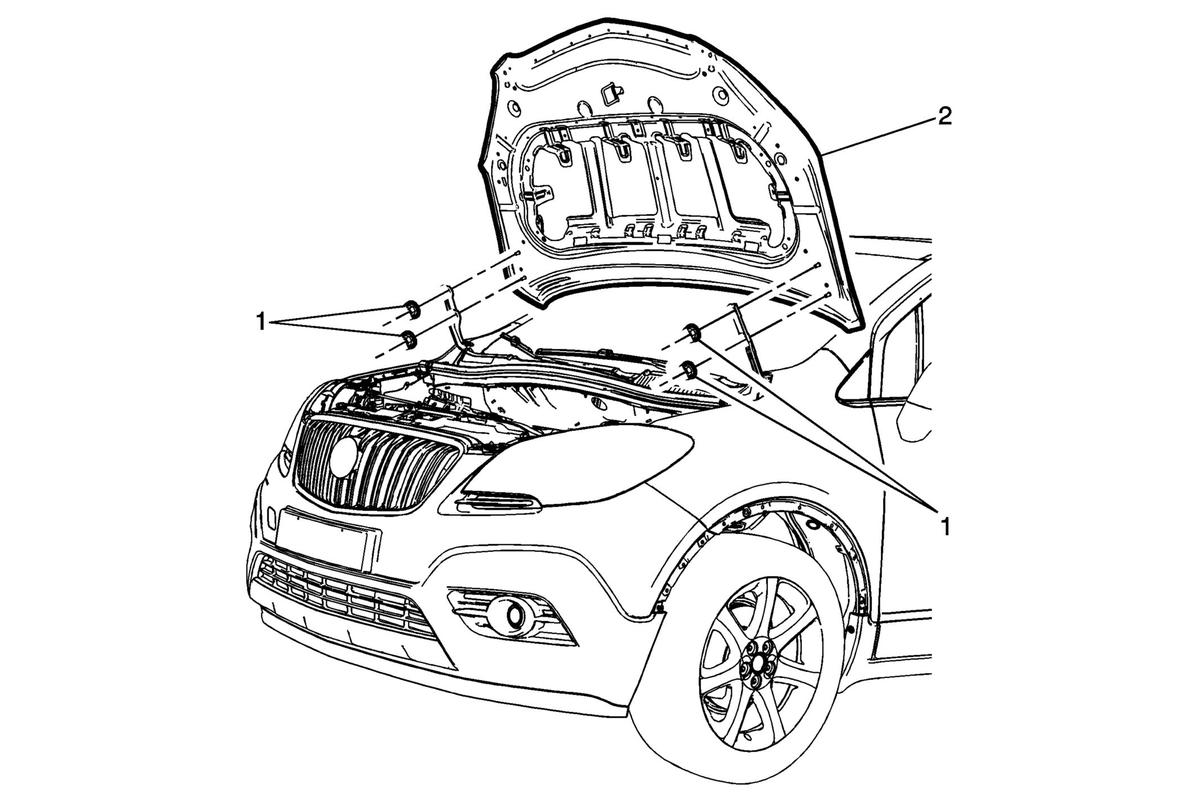

Fig 1: Hood (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Hood Hinge Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Mark the location of the hinge to the hood with a grease pencil to aid in alignment. Tighten 22 N.m (16 lb ft)
2	Hood WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Procedure With the aid of an assistant remove the hood. Transfer parts as needed. Adjust the hood if needed. Refer to Hood Adjustment (Encore) .

Callout

Component Name

Hood Hinge Nut (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Procedure
Mark the location of the hinge to the hood with a grease pencil to aid in alignment.
Tighten
22 N.m (16 lb ft)

Hood

WARNING:

When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Procedure

With the aid of an assistant remove the hood.
Transfer parts as needed.
Adjust the hood if needed. Refer to Hood Adjustment (Encore) .
