Headlamp Mount Panel Bracket Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

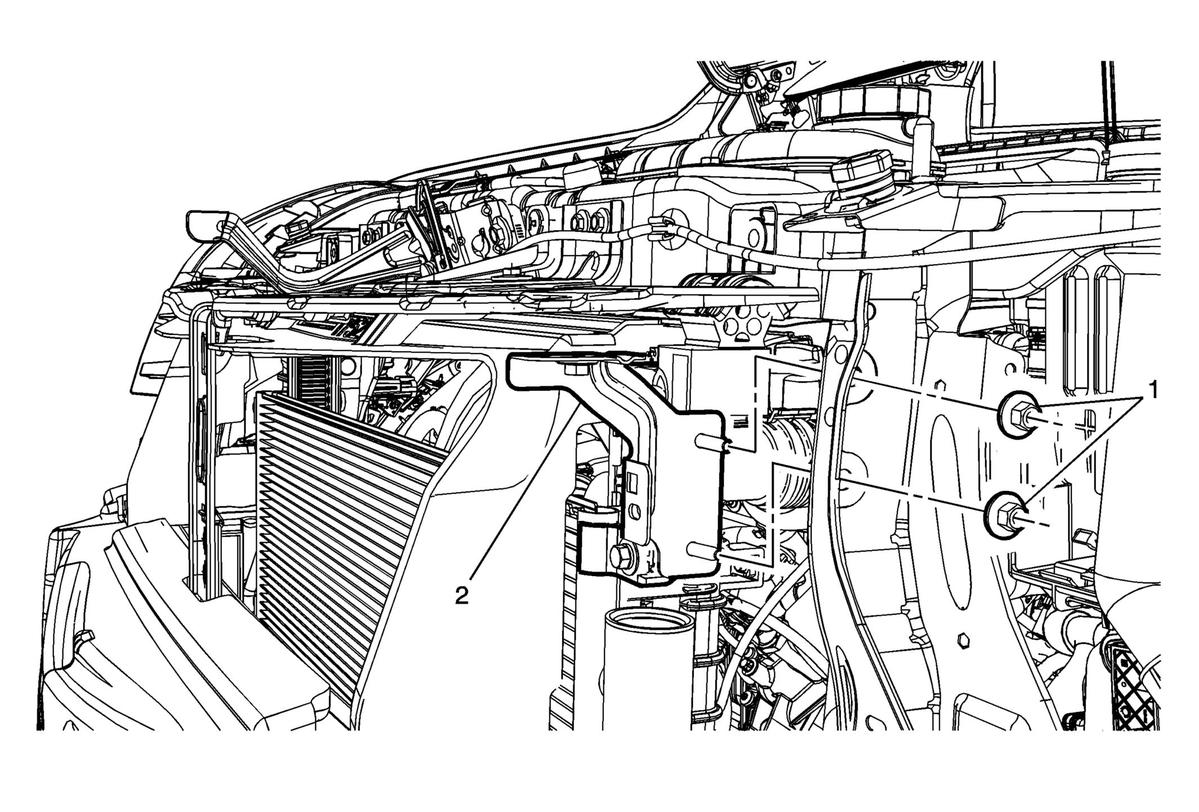

Fig 1: Headlamp Mount Panel Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia upper support bracket left or right end bolt, as needed. Refer to Front Bumper Fascia Upper Support Replacement (Trax) . Remove the left or right headlamp, as needed. Refer to Headlamp Replacement .
1	Headlamp Mount Panel Bracket Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Headlamp Mount Panel Bracket

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia upper support bracket left or right end bolt, as needed. Refer to Front Bumper Fascia Upper Support Replacement (Trax) .
Remove the left or right headlamp, as needed. Refer to Headlamp Replacement .

Headlamp Mount Panel Bracket Nut (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Headlamp Mount Panel Bracket
