Front Bumper Fascia Upper Support Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

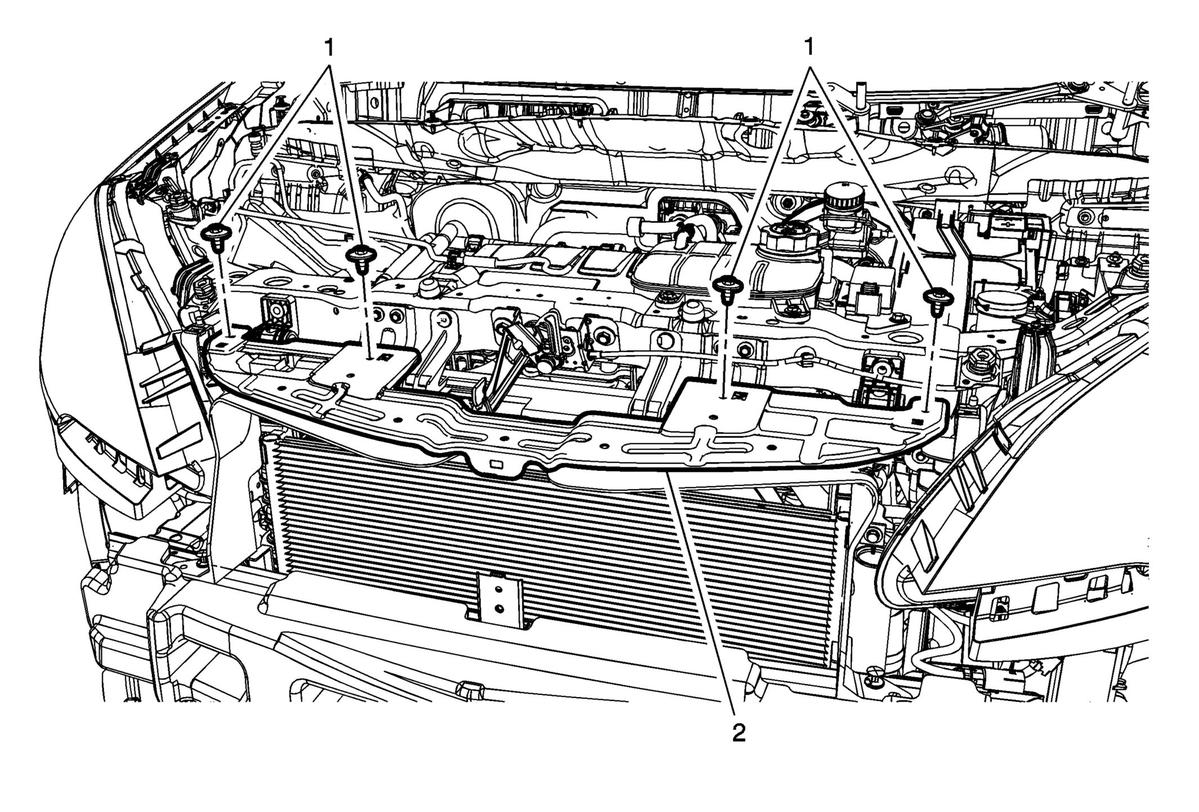

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front bumper fascia center support. Refer to Front Bumper Fascia Center Support Replacement . |
|
| 1 | Front Bumper Fascia Upper Support Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Front Bumper Fascia Upper Support |
