Front Side Door Check Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

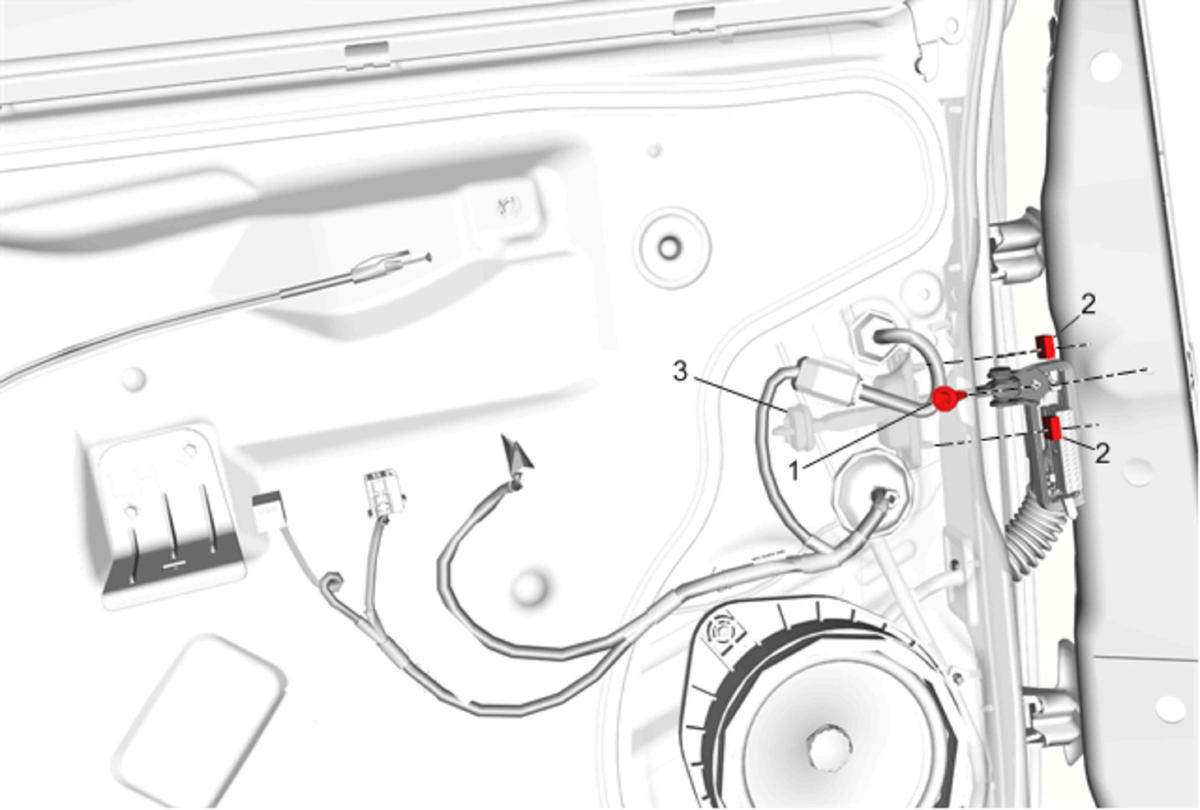

Fig 1: Front Side Door Check

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Place the window in the full up position. Remove the front side door trim panel. Refer to Front Side Door Trim Replacement (Encore)Front Side Door Trim Replacement (Trax) . Remove the front speaker. Refer to Radio Front Side Door Speaker Replacement .
1	Front Side Door Check Link Bolt to Body CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Front Side Door Check Link Nut (Qty: 2) Procedure Remove the water deflector. Tighten 9 N.m (80 lb in)
3	Front Side Door Check Link Assembly
