Front Side Door Trim Replacement (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

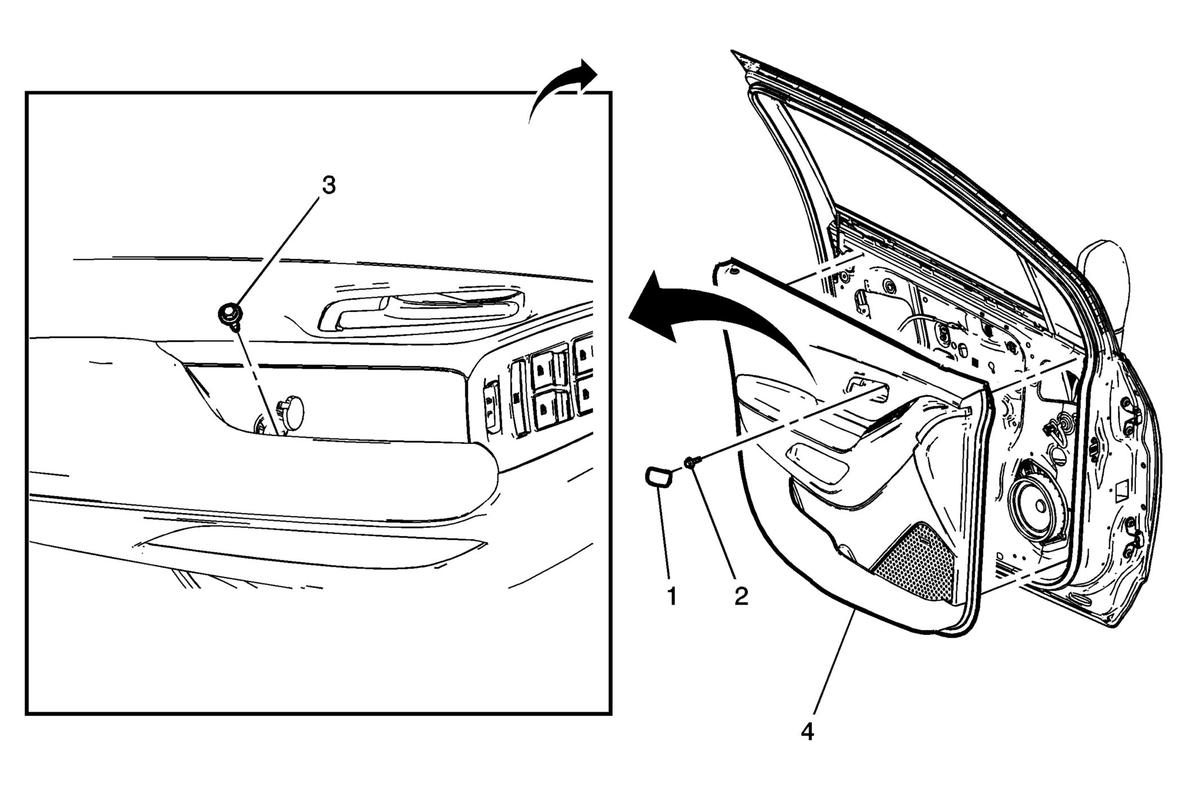

Fig 1: Front Side Door Trim (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Inside Handle Bolt Finish Cap Procedure Pull the handle back to remove the cap. Use a suitable tool to unsnap.
2	Front Side Door Inside Handle Fastener CAUTION: Refer to Fastener Caution .
3	Front Side Door Trim Fastener Procedure Use a small flat-bladed tool to open the front side door trim integral cap to access the fastener.
4	Front Side Door Trim Assembly Procedure Use the appropriate plastic trim tool to aid in the removal of the door trim. Pull upwards on the door lock retainer cable to disengage. Disconnect the electrical connector.
