Front Side Door Adjustment

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

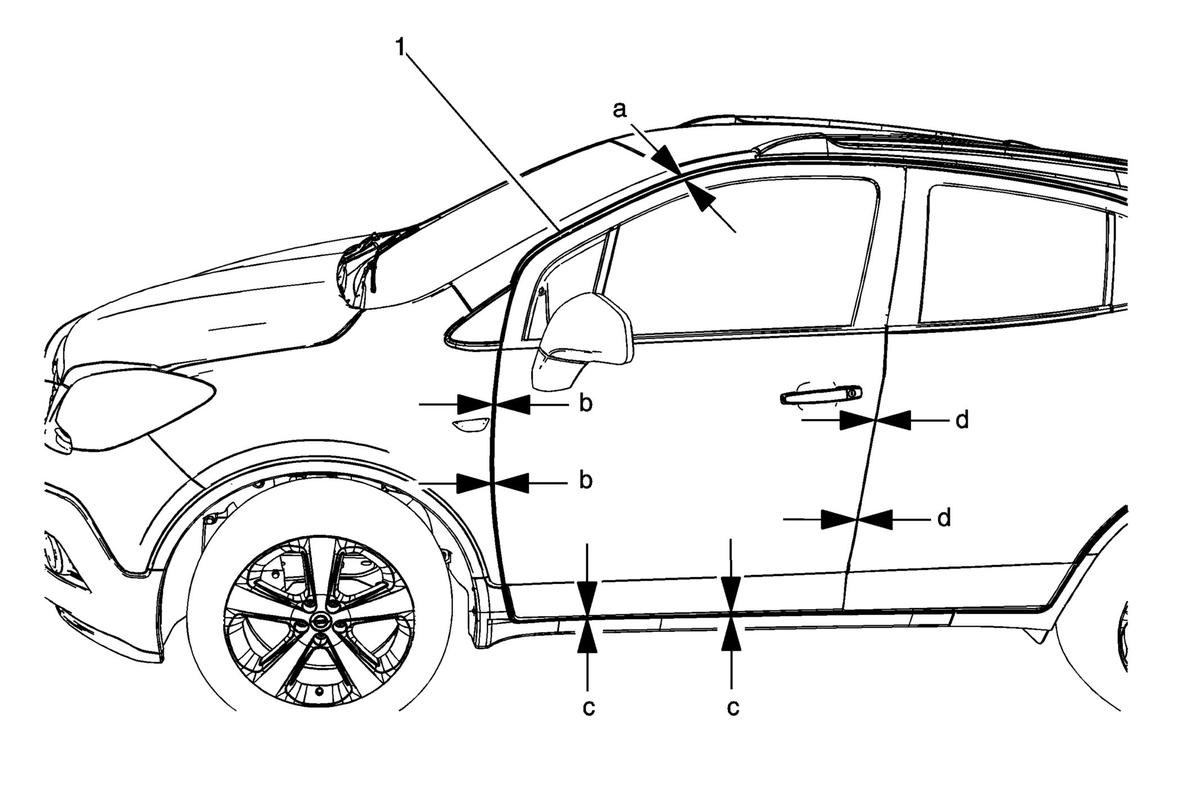

Fig 1: Front Side Door Adjustment Points
GM2834805Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front wheelhouse liner if the hinge to body needs to be adjusted. Refer to Front Wheelhouse Liner Replacement (Trax)Front Wheelhouse Liner Replacement (Encore) .
1 Front Side Door
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Loosen the front side door hinge bolt (Qty: 4) to adjust the front side door.
  2. Adjust the front side door in order to obtain an even gap between the front side door and the roof, the rear door, the rocker panel and the front fender and so that the front side door is flush with the roof, the rear door, the rocker panel and the front fender.

Adjustment

  • Front side door to roof

    (a) 4.5 mm ± 1.0 mm (0.18 in ± 0.04 in)

  • Front side door to front fender

    (b) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)

  • Front side door to rocker panel

    (c) 5.0 mm ± 1.0 mm (0.20 in ± 0.04 in)

  • Front side door to rear door

    (d) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)


Tighten
25 N.m (18 lb ft)
