Front Fender Insulator Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

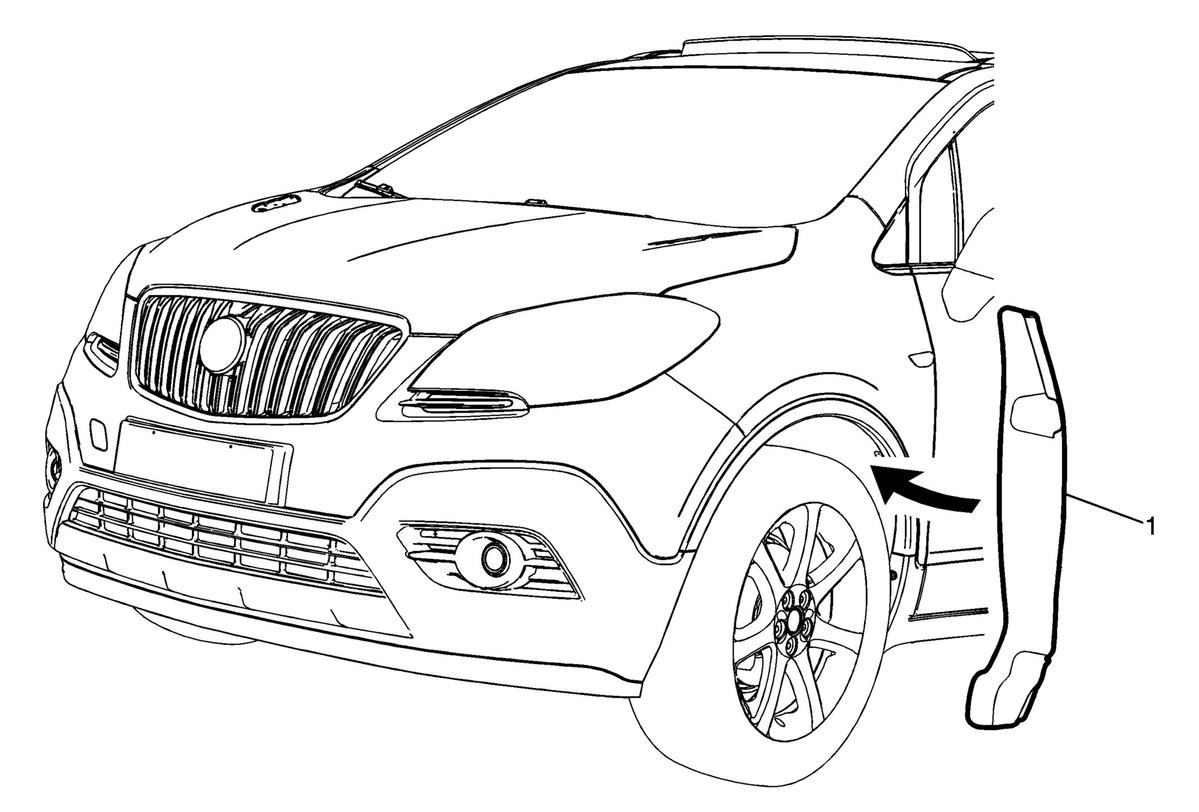

Fig 1: Front Fender Insulator (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse rear liner. Refer to Front Wheelhouse Liner Replacement (Encore) .
1	Front Fender Insulator Procedure Grasp the front fender insulator and pull from the rear of the fender. Firmly press the fender insulator into the rear of the fender until fully seated.

Callout

Component Name

Preliminary Procedure
Remove the front wheelhouse rear liner. Refer to Front Wheelhouse Liner Replacement (Encore) .

Front Fender Insulator

Procedure

Grasp the front fender insulator and pull from the rear of the fender.
Firmly press the fender insulator into the rear of the fender until fully seated.
