Rear Side Door Locking Rod Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

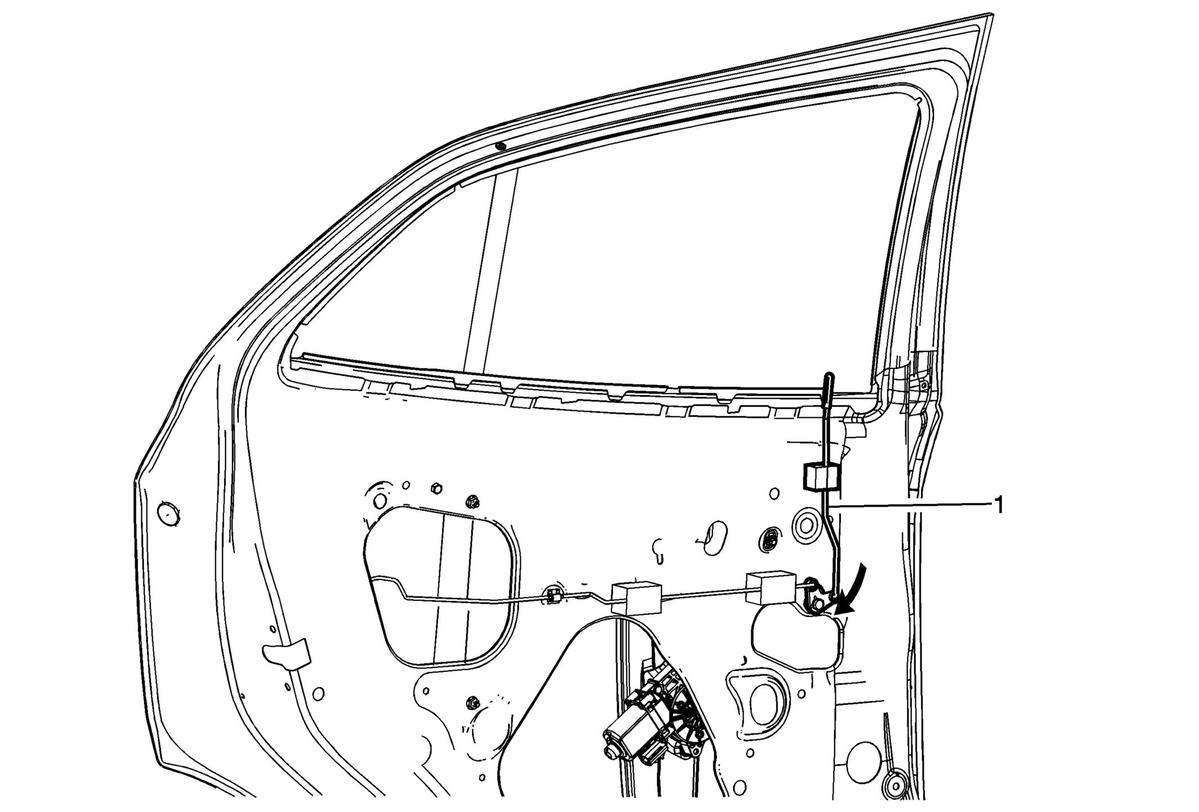

Fig 1: Rear Side Door Locking Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Locking Rod Procedure Remove the water deflector. Transfer components as necessary. NOTE: Inspect the door lock system for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedures
Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .

Rear Side Door Locking Rod

Procedure

Remove the water deflector.
Transfer components as necessary.

NOTE:

Inspect the door lock system for proper operation before installing the door trim.
