Rear Side Door Locking Rod Bellcrank Rod Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

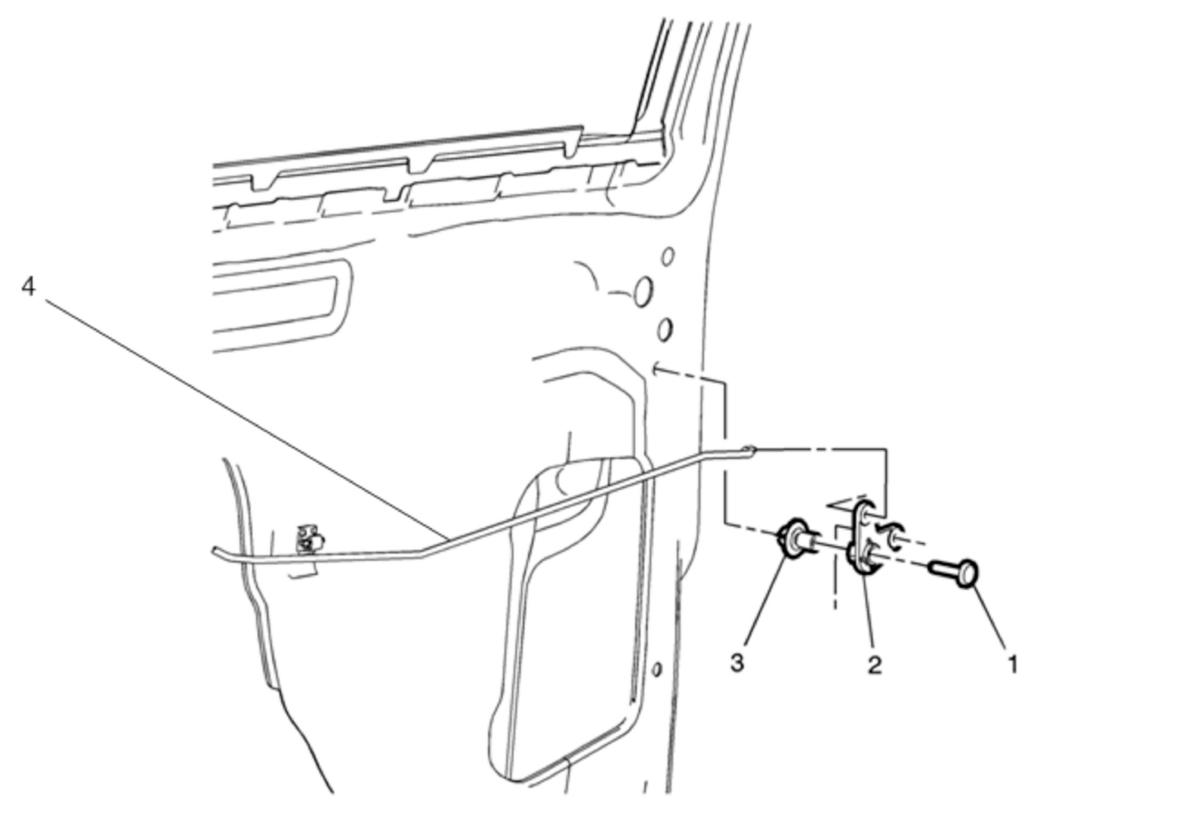

Fig 1: Rear Side Door Locking Rod Bellcrank

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Locking Rod Bellcrank Center Retainer Procedure Place the window in the full up position. Remove the water deflector. NOTE: Use a small flat-bladed tool to release the retainer from the center of the bellcrank.
2	Rear Side Door Locking Rod Bellcrank Center
3	Rear Side Door Locking Rod Bellcrank Retainer to Door NOTE: Inspect the door lock system for proper operation before installing the door trim.
4	Rear Side Door Locking Rod Bellcrank Rod
