Front Side Door Outside Handle Rod Adjustment

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

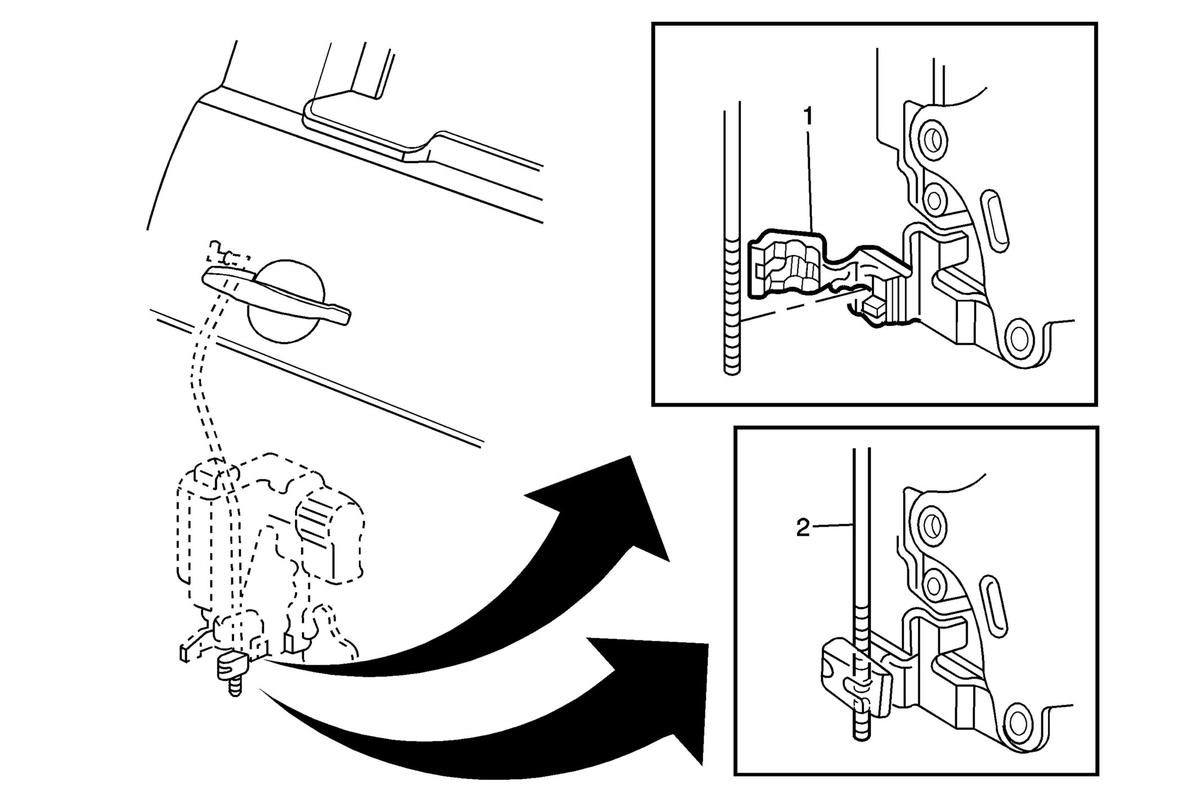

Fig 1: Side Door Outside Handle Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door trim. Refer to Front Side Door Trim Replacement (Encore)Front Side Door Trim Replacement (Trax)
1	Front Side Door Outside Handle Rod Retainer Procedure Remove the front side door water deflector.
2	Front Side Door Outside Handle Rod Procedure Position the front side door outside handle rod in the retainer in order to eliminate any free play in the outside door handle. Adjust the travel of the handle by removing the threaded rod from the retainer. Install the retainer cover closed over the threaded front side door outside handle rod. Inspect the door lock system for proper operation before installing the door trim. NOTE: Use a flat-head tool to open the retainer from the threaded rod connecting the lock to the outside handle.

Callout

Component Name

Preliminary Procedures
Remove the front side door trim. Refer to Front Side Door Trim Replacement (Encore)Front Side Door Trim Replacement (Trax)

Front Side Door Outside Handle Rod Retainer
Procedure
Remove the front side door water deflector.

Front Side Door Outside Handle Rod

Procedure

Position the front side door outside handle rod in the retainer in order to eliminate any free play in the outside door handle.
Adjust the travel of the handle by removing the threaded rod from the retainer.
Install the retainer cover closed over the threaded front side door outside handle rod.
Inspect the door lock system for proper operation before installing the door trim.

NOTE:

Use a flat-head tool to open the retainer from the threaded rod connecting the lock to the outside handle.
