Front Side Door Outside Handle Bracket Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

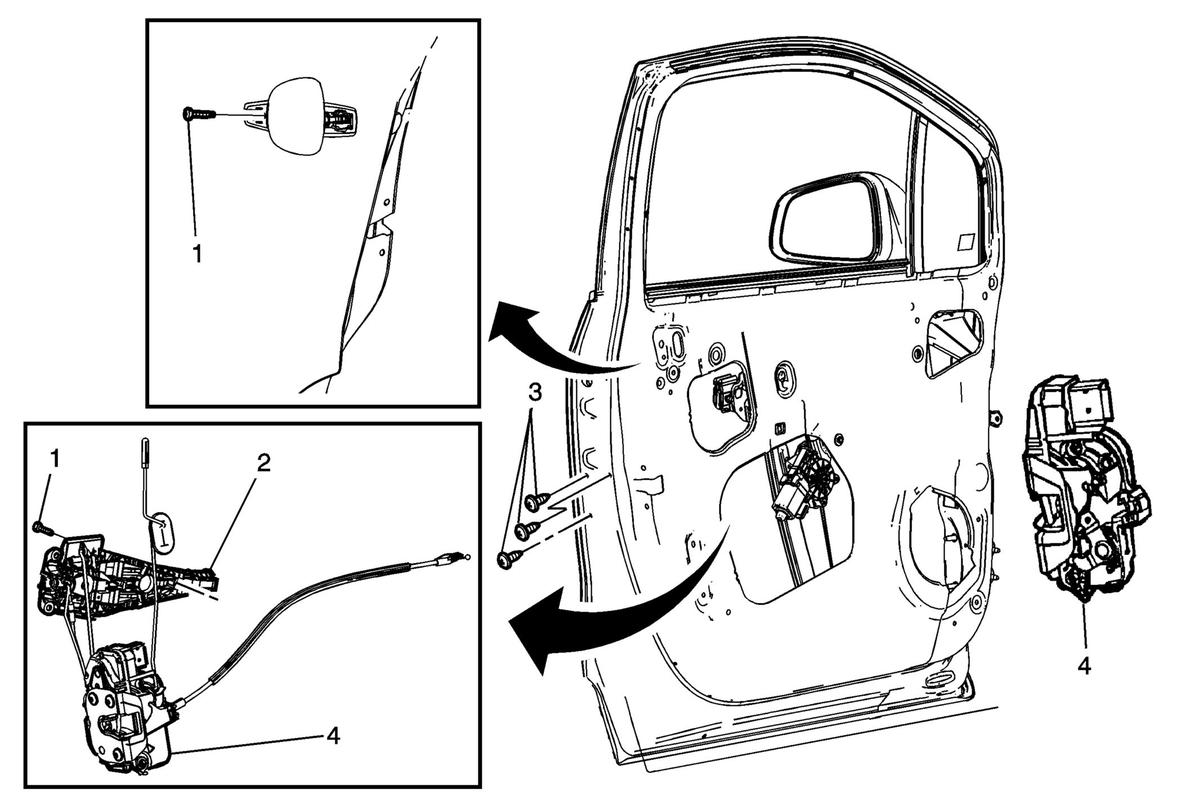

Fig 1: Front Side Door Outside Handle Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door outside handle. Refer to Front Side Door Outside Handle Replacement .
1	Front Side Door Outside Handle Bracket Screw CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Front Side Door Outside Handle Bracket
3	Front Side Door Latch Screws (Qty: 3) Procedure Remove the front side door latch, housing bracket and rods as assembly. Refer to Front Side Door Latch Replacement . Tighten 9 N.m (80 lb in)
4	Front Side Door Latch and Bracket Assembly Procedure Transfer components as necessary. In order to prevent outside handle lever pre-load, lock, outside handle, handle bracket and cover/cap shall be fully secured to the door prior to securing integral lock clip to outside handle rod. Integral lock clip shall be in the full up position while securing to outside handle rod. Refer to Front Side Door Outside Handle Rod Adjustment . NOTE: Inspect the door lock system for proper operation before installing the door trim.
