Front Seat Belt Guide Adjuster Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

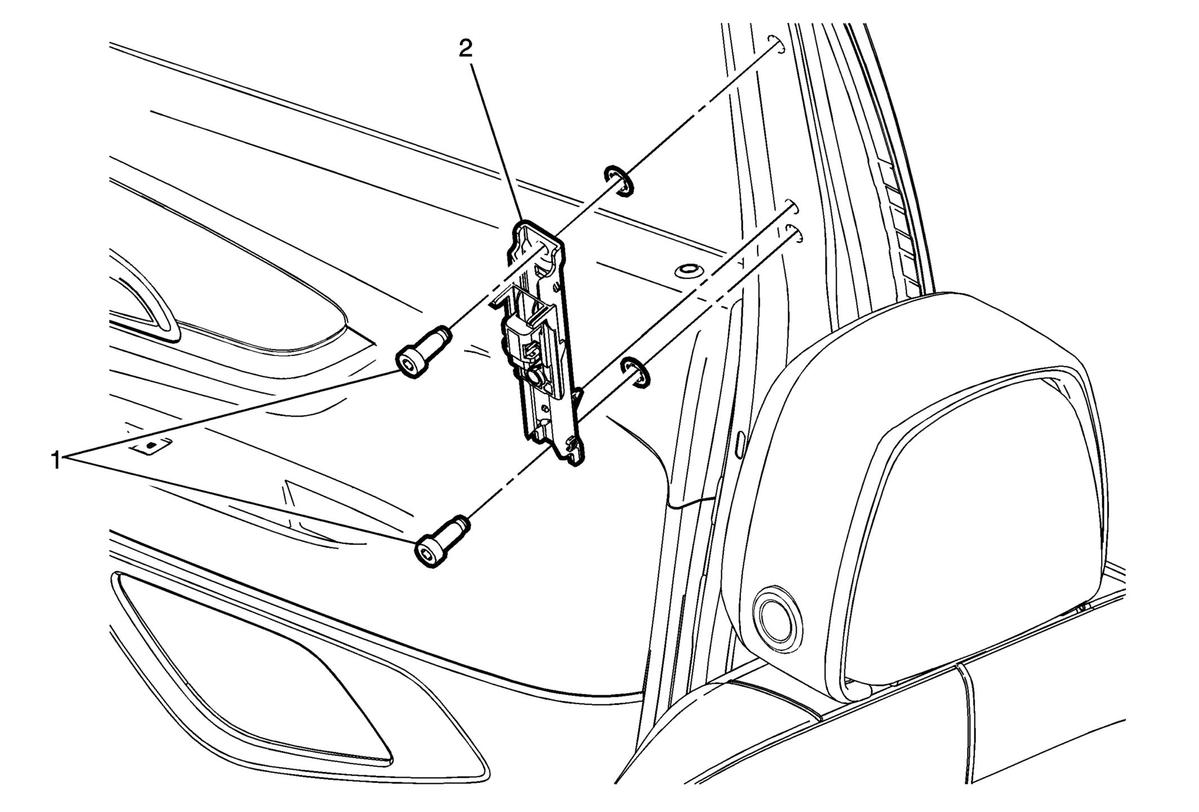

Fig 1: Front Seat Belt Guide Adjuster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement (Encore)Center Pillar Upper Trim Panel Replacement (Trax) Remove the front seat belt retractor upper fastener only. Refer to Front Seat Belt Retractor Replacement (With A69) .
1	Front Seat Shoulder Belt Guide Adjuster Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Front Seat Shoulder Belt Guide Adjuster

Callout

Component Name

Preliminary Procedures

Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement (Encore)Center Pillar Upper Trim Panel Replacement (Trax)
Remove the front seat belt retractor upper fastener only. Refer to Front Seat Belt Retractor Replacement (With A69) .

Front Seat Shoulder Belt Guide Adjuster Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)

Front Seat Shoulder Belt Guide Adjuster
