Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the wheel bearing and hub assembly. Refer to Rear Wheel Bearing and Hub Replacement (With Drum Brakes) Rear Wheel Bearing and Hub Replacement (With Disc Brakes) .

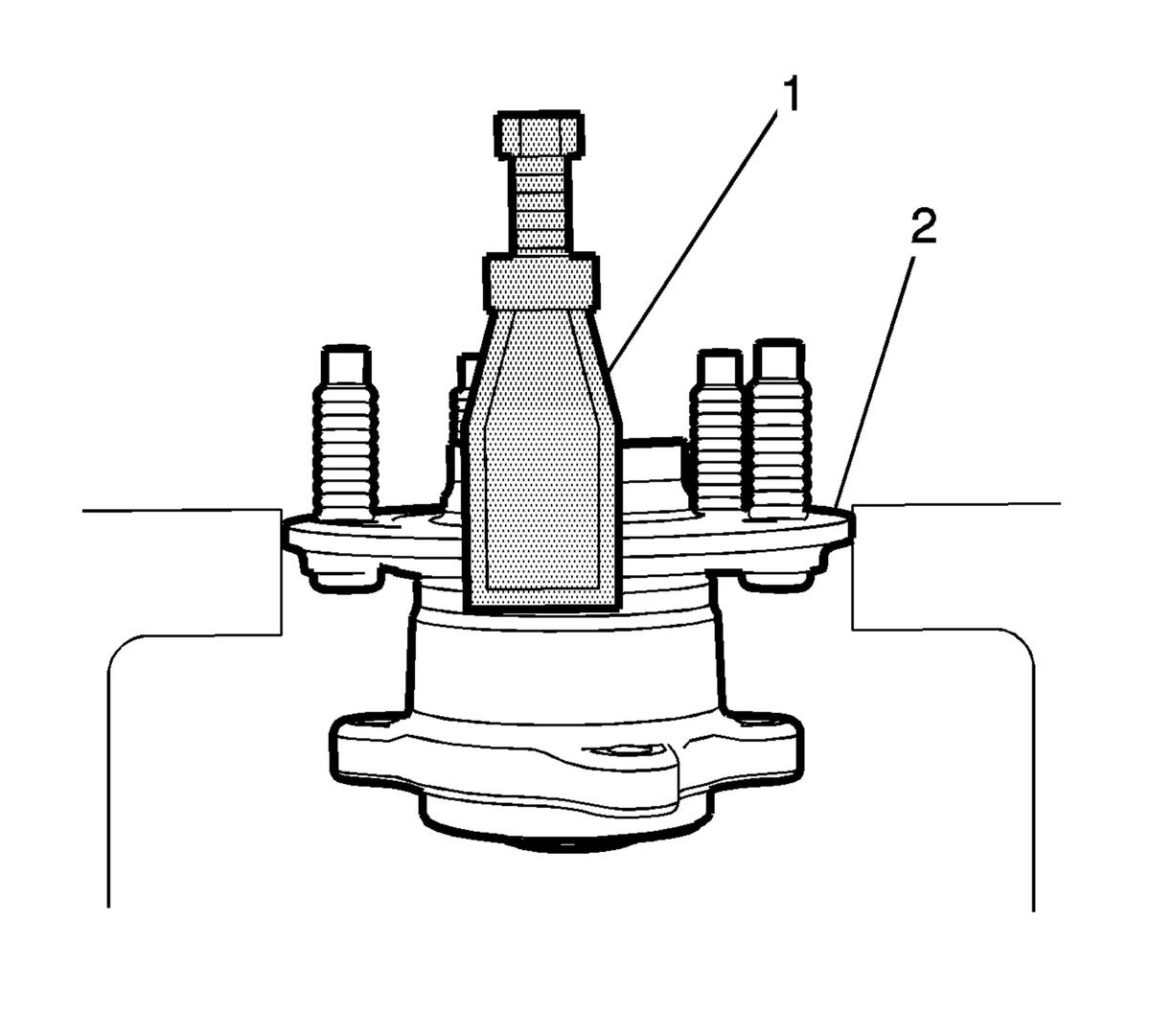

    3. Fig 1: Wheel Bearing Hub/Assembly And Separator
    GM2501244Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure that the wheel bearing and hub flange is securely tighten in the vise.

  3. Install the wheel bearing and hub assembly (2) in a suitable vise.
  4. Using the CH 43631  separator (1), remove and discard the wheel stud from the wheel bearing and hub assembly.
