Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

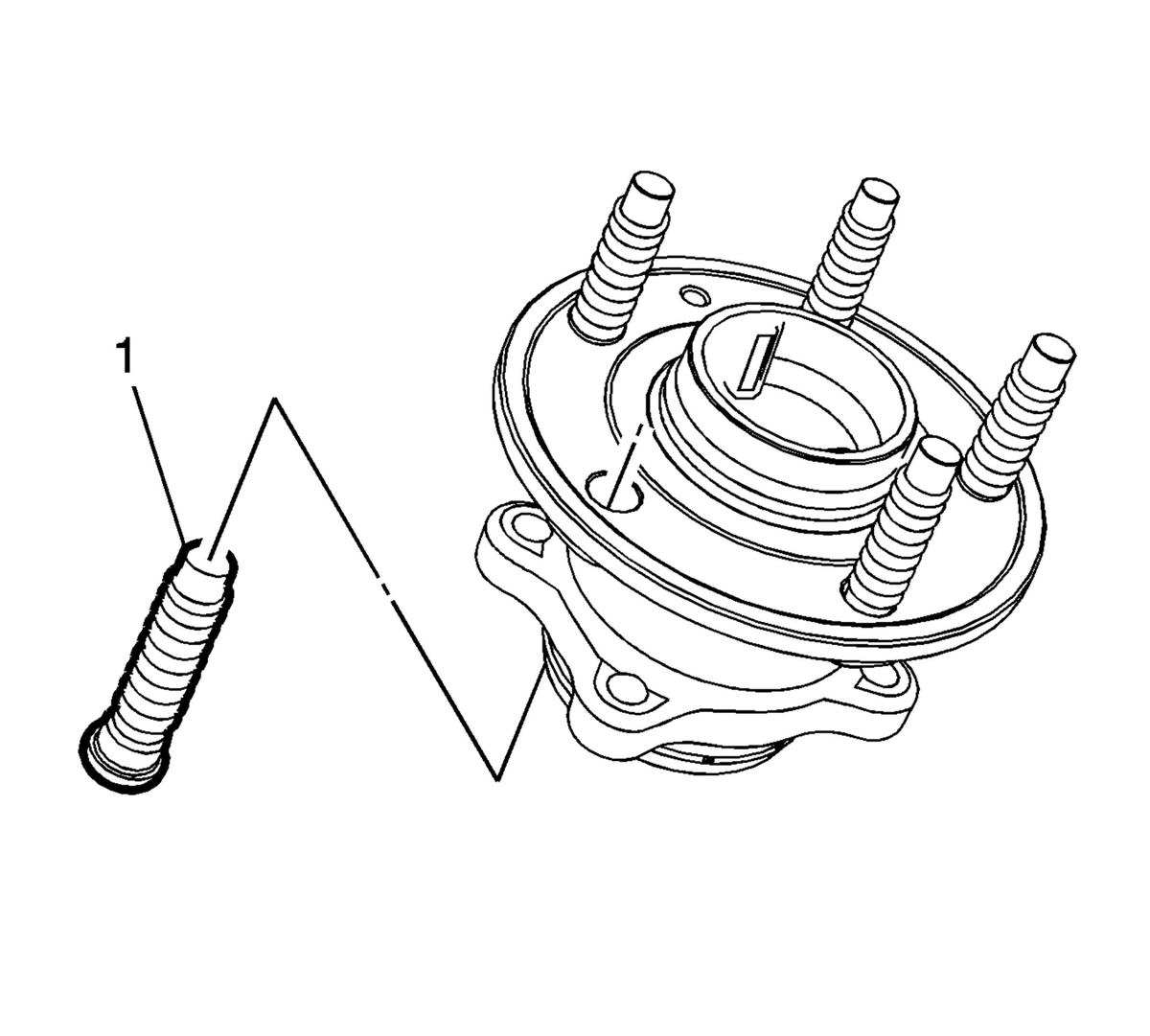

    Fig 1: Wheel Stud
    GM2500978Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure that the wheel stud is properly aligned in the wheel hub flange.

  1. Position the NEW wheel stud (1) in the wheel bearing and hub assembly.

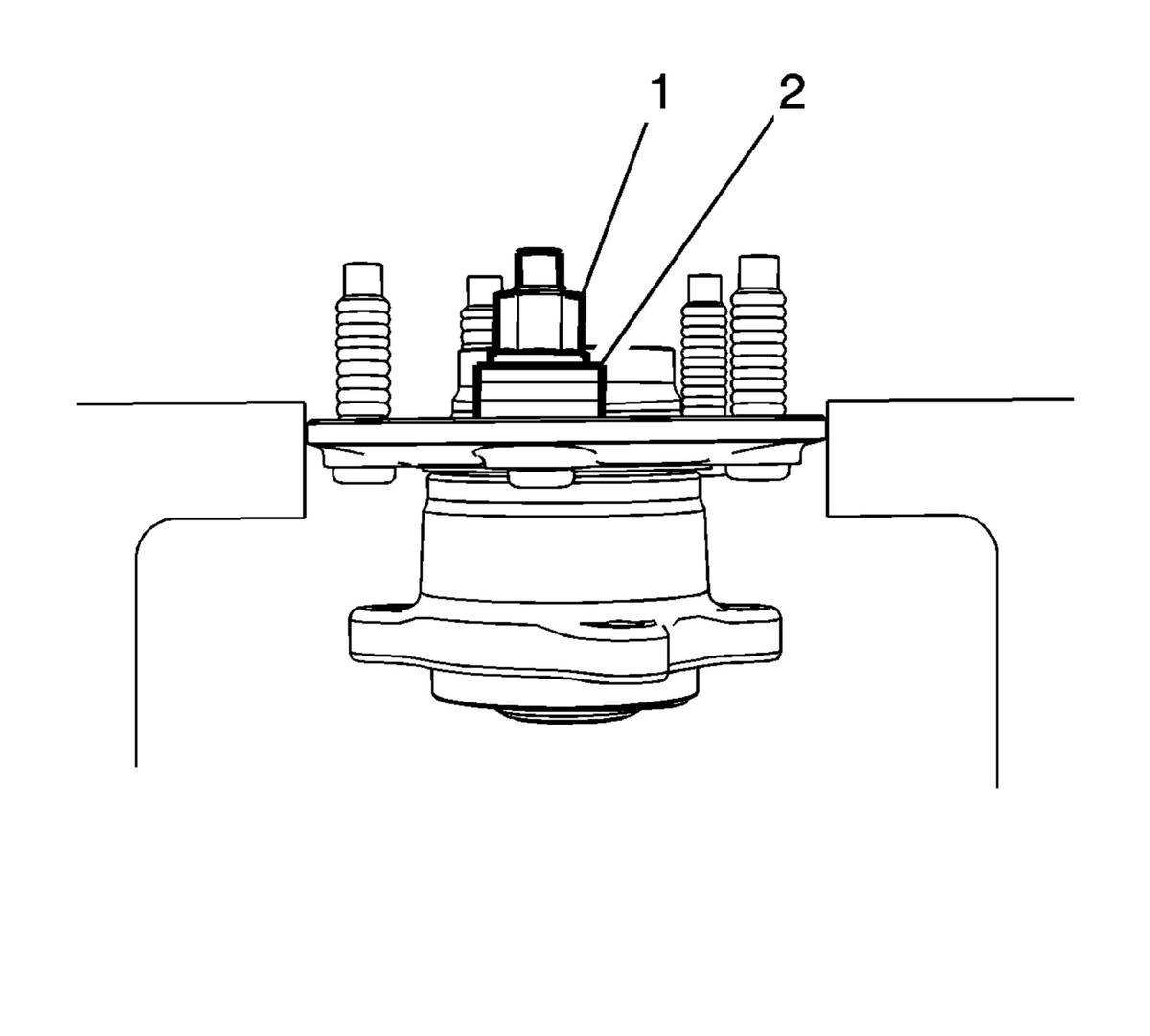

    2. Fig 2: Wheel Nut And Washers
    GM2501147Courtesy of GENERAL MOTORS COMPANY
  2. Using three washers (2) and an old wheel nut (1), tighten the wheel nut (1) until the wheel stud is seated in the wheel bearing and hub flange.
  3. Remove the wheel bearing and hub assembly from the vise.
  4. Install the wheel bearing and hub assembly. Refer to Rear Wheel Bearing and Hub Replacement (With Drum Brakes) Rear Wheel Bearing and Hub Replacement (With Disc Brakes) .
  5. Remove the support and lower the vehicle.
