Rear Bumper Lower Fascia Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

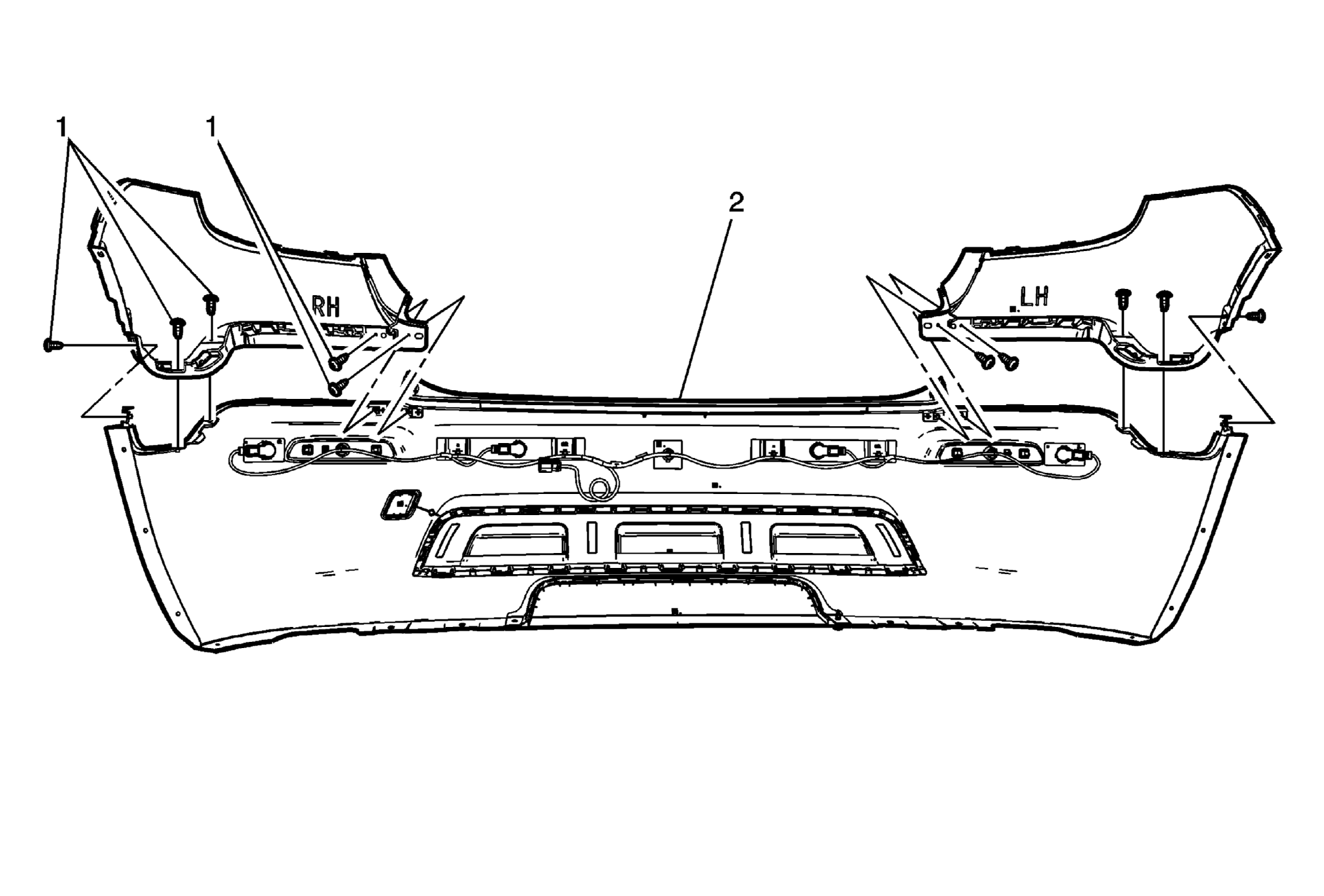

Fig 1: Rear Bumper Lower Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Bumper Lower Fascia Screw (Qty: 10) CAUTION: Refer to Fastener Caution .
2	Rear Bumper Lower Fascia Procedure Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the upper fascias. Transfer part as needed.

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

Rear Bumper Lower Fascia Screw (Qty: 10)

CAUTION:

Refer to Fastener Caution .

Rear Bumper Lower Fascia

Procedure

Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the upper fascias.
Transfer part as needed.
