Rear Bumper Fascia Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

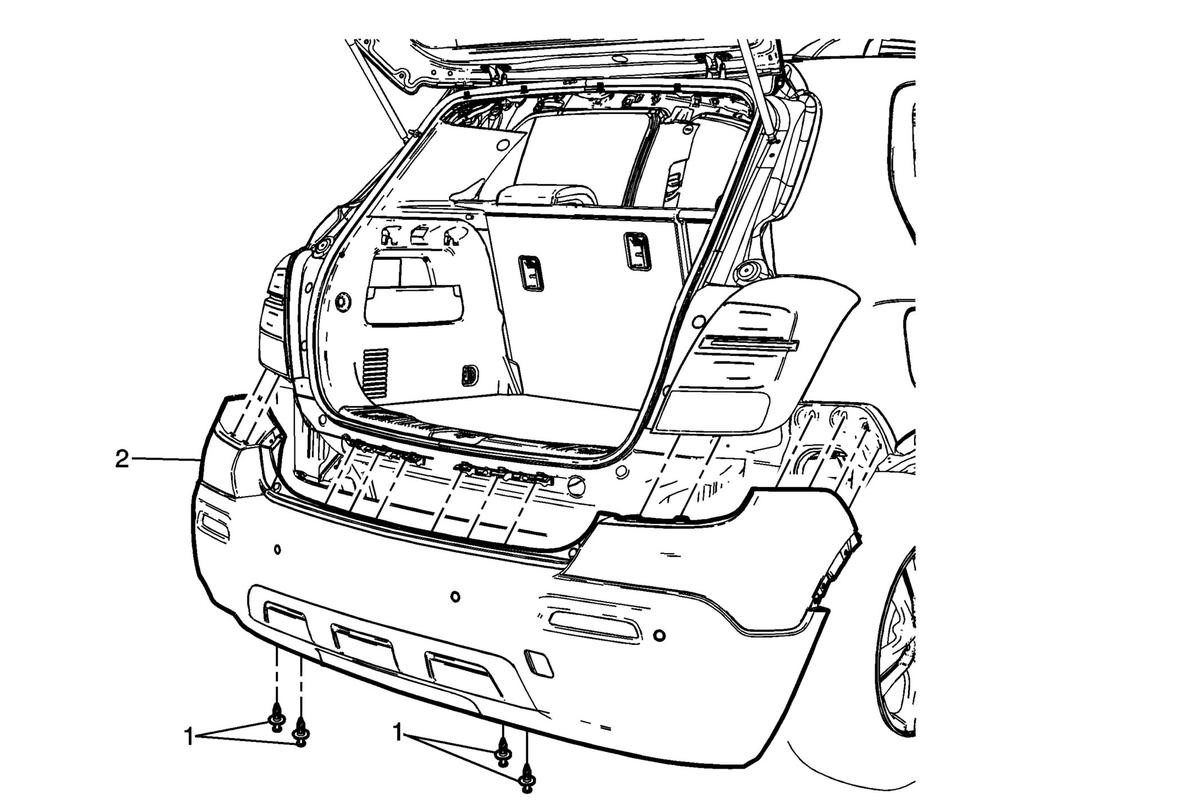

Fig 1: Rear Bumper Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear wheel opening molding. Refer to Rear Wheel Opening Molding Replacement . Remove the 5 rear wheel liner to fascia screws. Refer to Rear Wheelhouse Liner Replacement .
1	Rear Bumper Fascia Lower Push-In Retainer (Qty: 4)
2	Rear Bumper Fascia Procedure Carefully push a small nylon wedge between the fascia and the rear fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia guide. Disconnect the electrical connector. Transfer parts as needed.

Callout

Component Name

Preliminary Procedures

Remove the rear wheel opening molding. Refer to Rear Wheel Opening Molding Replacement .
Remove the 5 rear wheel liner to fascia screws. Refer to Rear Wheelhouse Liner Replacement .

Rear Bumper Fascia Lower Push-In Retainer (Qty: 4)

Rear Bumper Fascia

Procedure

Carefully push a small nylon wedge between the fascia and the rear fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia guide.
Disconnect the electrical connector.
Transfer parts as needed.
