Rear Bumper Impact Bar Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

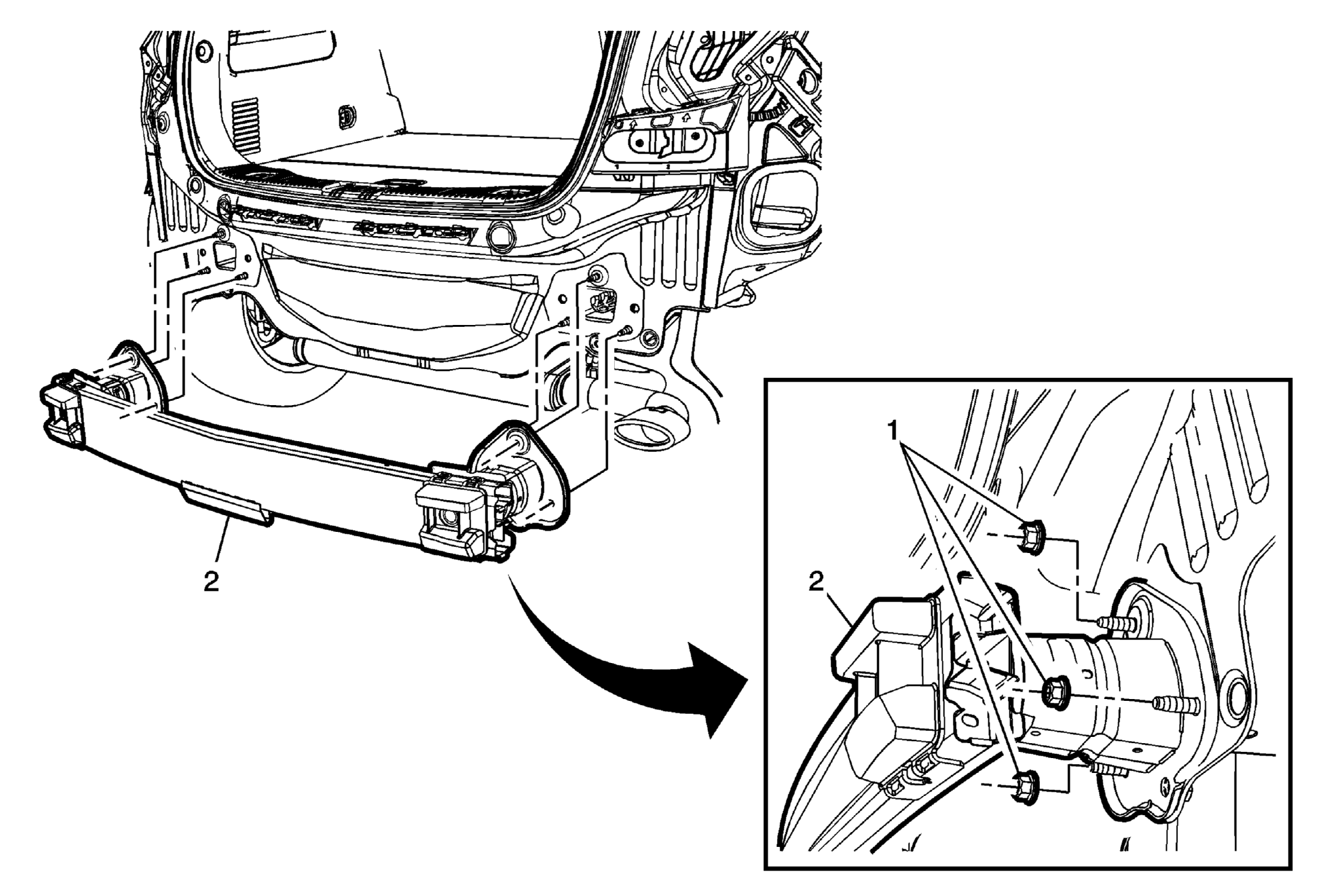

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . |
|
| 1 | Rear Bumper Impact Bar Nut (Qty: 6)
CAUTION:
Refer to Fastener Caution . Tighten 52 N.m (38 lb ft) |
| 2 | Rear Bumper Impact Bar Procedure Transfer parts as needed. |
