Rear Bumper Guard Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

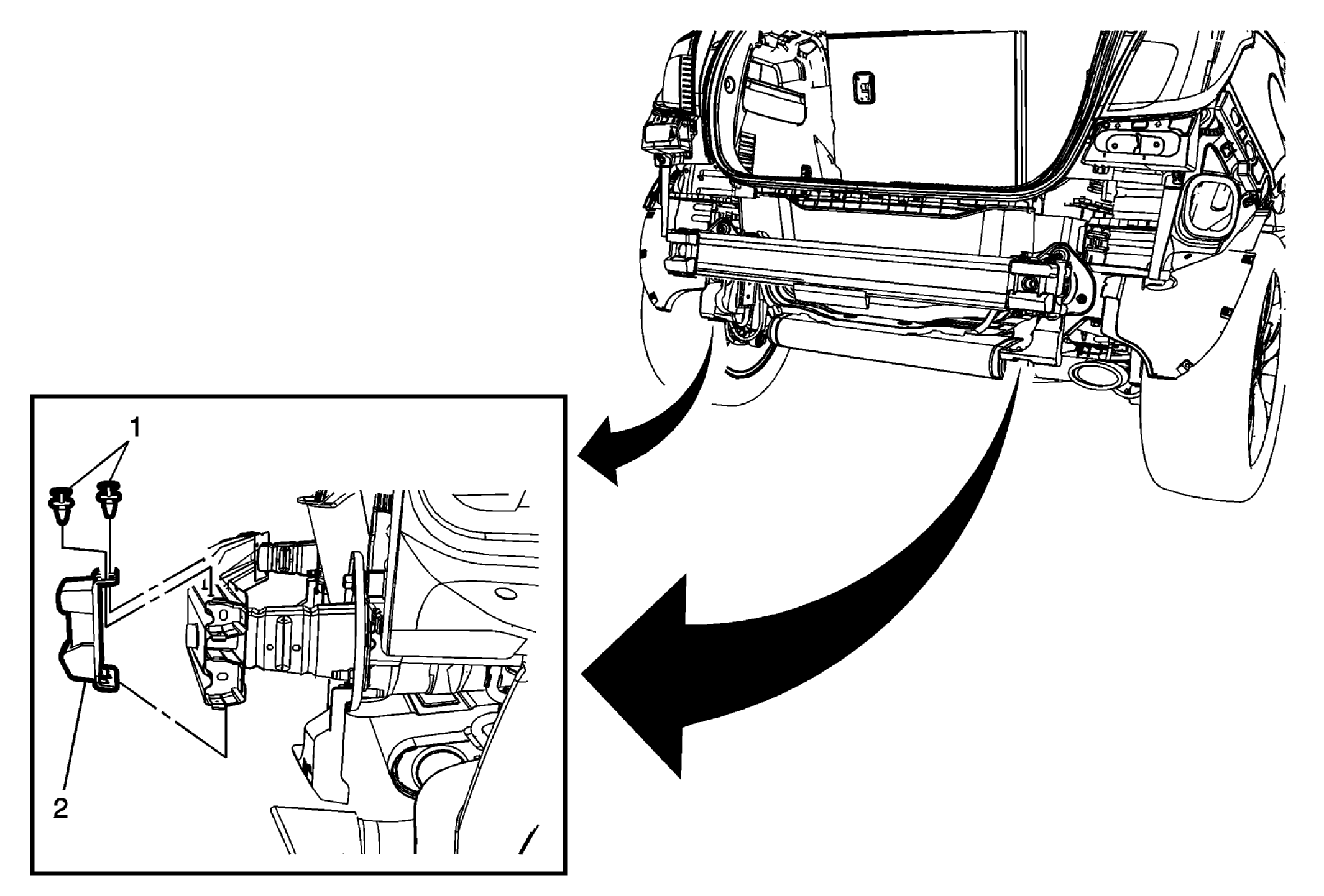

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . |
|
| 1 | Rear Bumper Guard Push-In Retainer (Qty: 2) |
| 2 | Rear Bumper Energy Absorber Procedure Disengage the lower retainer from the rear impact bar. |
