Rear Wheelhouse Liner Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

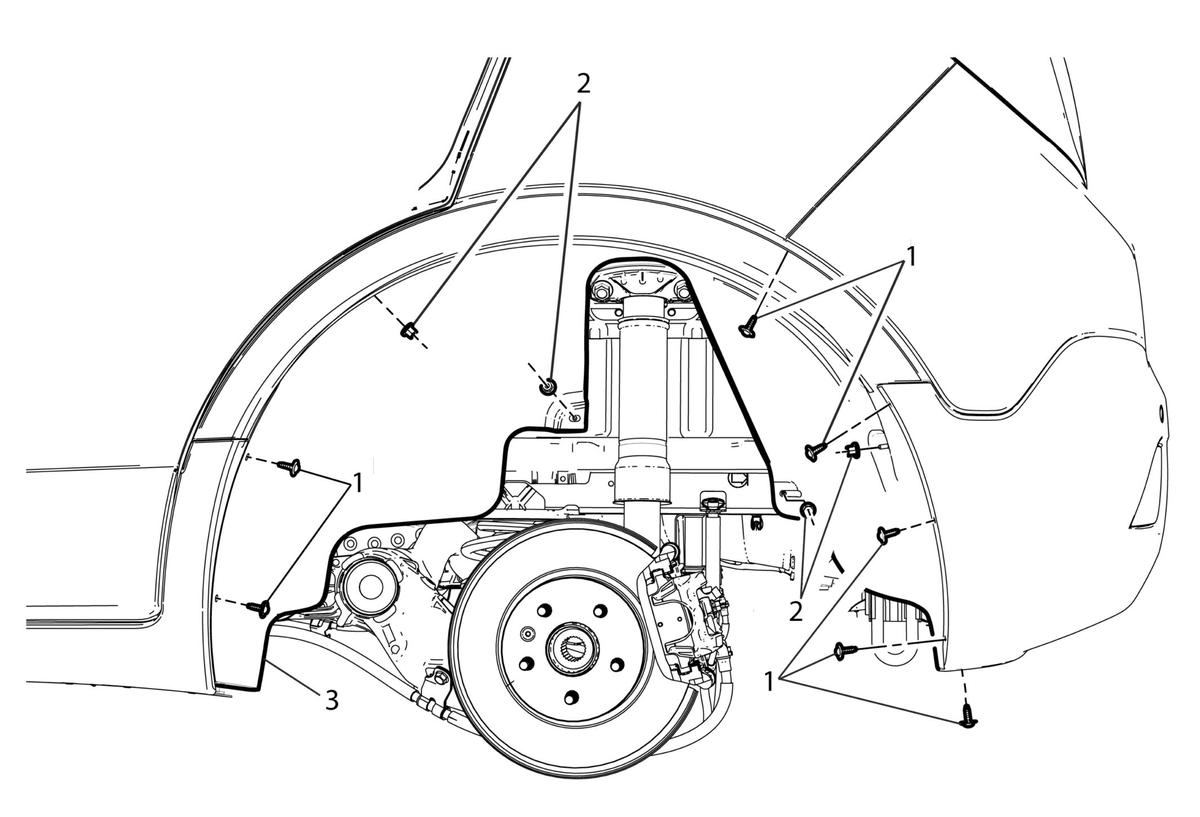

Fig 1: Rear Wheelhouse Liner

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the rocker panel rear molding push-in retainers (Qty: 2).
1	Rear Wheelhouse Panel Liner Screw (Qty: 7) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Rear Wheelhouse Panel Liner Nut (Qty: 4) Tighten: 1.8 N.m (16 lb in)
3	Rear Wheelhouse Panel Liner Procedure Transfer parts as needed.
